CELLI SPIKE ROTOR (FOLDING) – SUPER TIGER 360
TRACTORS FROM 200 – 360 HP

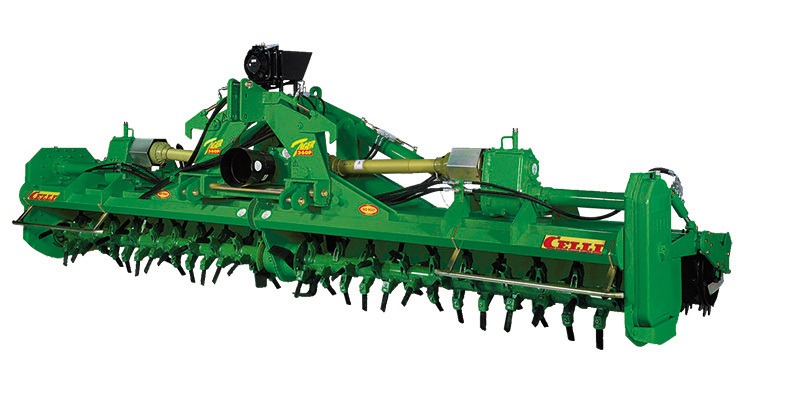

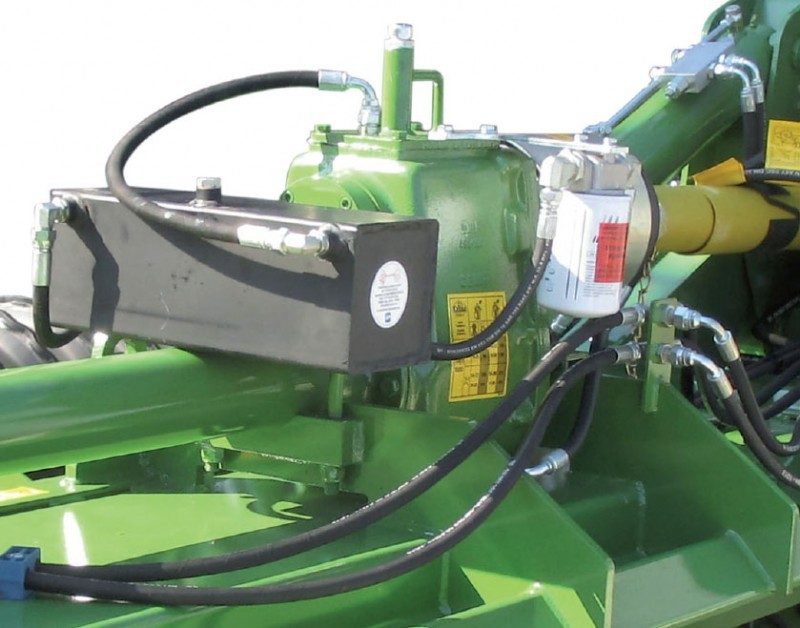

Made for tractors with power ranges up to 360 HP: the Super Tiger 360 is certainly the most robust soil tilling machine available on the market today. It was built by coupling 2 Tiger 190 units through a sturdy central box frame to which hydraulic lifting jacks are fixed. This allows the machine to be closed for transport. The diagonal area when closed is 264 cm.
Enquire for price
DISCLAIMER
The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.
Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.
PRICING & STOCK AVAILABILITY
Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.
TECHNICAL SPECIFICATIONS
• maximum horsepower: 360 HP (264 KW)
• PTO: 1000 rpm with 2-speed gearbox No. of teeth 16-29 = 284 rpm; 17-28 = 310 rpm
• gear side transmission
• Cat. 3 3-point hitch
• swinging front hitches
• central blade
• rear tailgate, adjustment by hydraulic rams
• leveling rollers, adjustment by hydraulic rams
• rotor with double welded flange

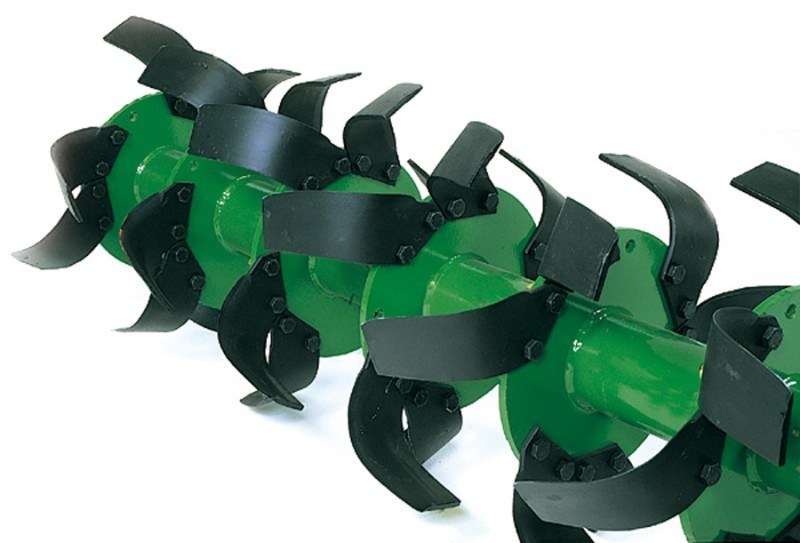

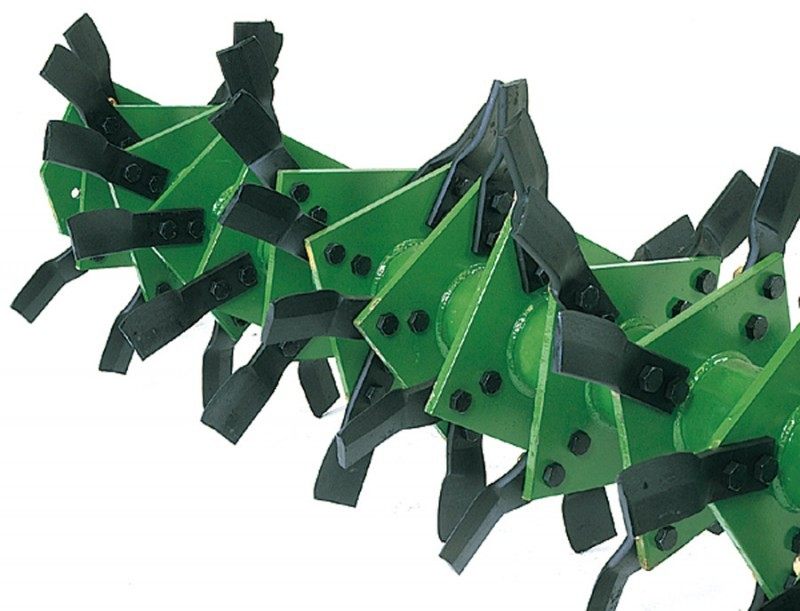

• L-shaped blades: 80×10 mm (6 blades each flange, side blades leaning inwards)
• max. working depth 25 cm
• side drive shafts with automatic safety device S.10
• central drive shaft S.12
• rear lights for road transport
• removable safety devices

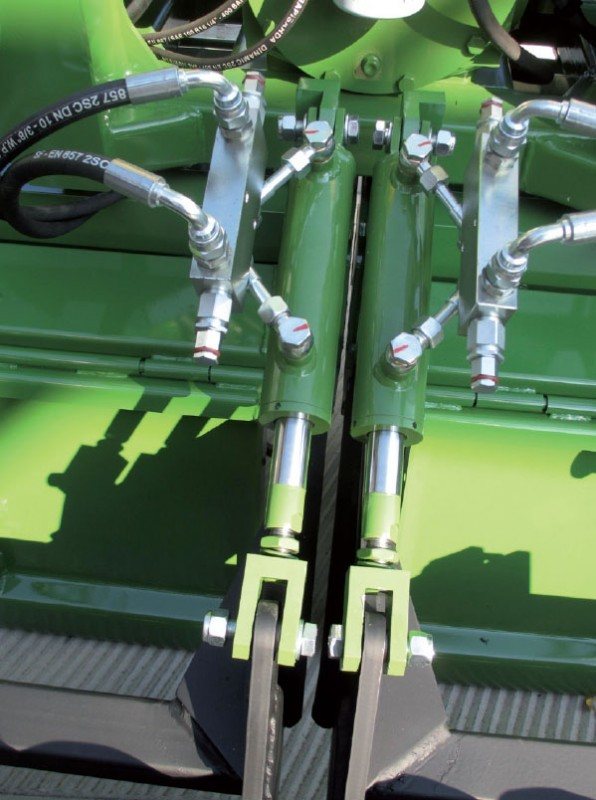

• side lifting with double ram (mod.600)
