SILVAN SCRAM JET SPRAYER

Name: SILVAN SCRAM JET SPRAYER
SKU: SILVAN-D99-180
Availability: InStock

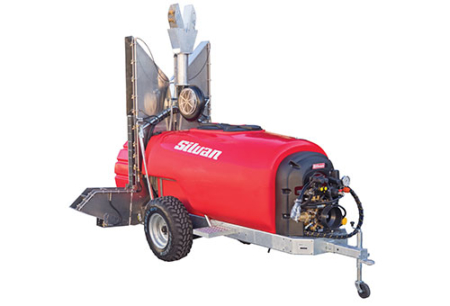

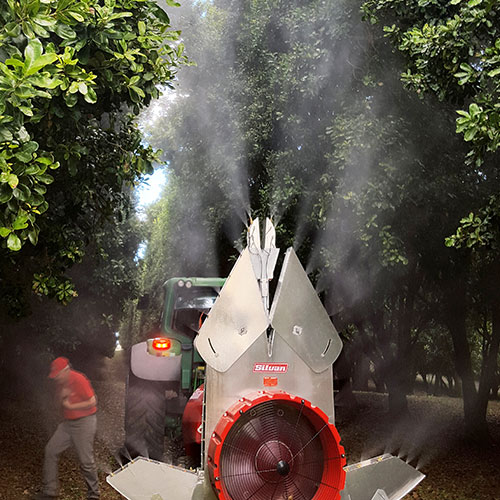

The SCRAM Jet utilises a hydraulically driven turbine fan which is positioned above the top wings of the Radak conveyor. The high velocity air stream produced by the fan is directed into the tree canopy to provide targeted coverage in the top of tall trees when used in conjunction with the Radak conveyor. Note: image shows 2000L tank which is not part of Scram Jet.

Enquire for price

Export as PDF Print

VIEW PARTS/ACCESSORIES

HIDE PARTS/ACCESSORIES

VIEW PARTS/ACCESSORIES

DISCLAIMER

The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.

Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.

PRICING & STOCK AVAILABILITY

Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.

Fan size: 320mm turbine fan hydraulically driven from tractor remotes. Hydraulic motor opposite to air intake with adjustable flow valve and case drain for return oil flow. Fitted with 12V oil cooler. Required hydraulic oil flow: 60L/min at 80 Bar pressure.

Nozzles: Flip-over type (for dilute/concentrate spraying) or adjustable cannons (2 per side).

Conveyor: Adjustable aluminium double sided vanes.

Suited tree height: Up to 12 metres (when fitted with Radak).
