SILVAN 1100L CANE BOOM LINKAGE SPRAYER

Name: SILVAN 1100L CANE BOOM LINKAGE SPRAYER
SKU: SILVAN-K11NH-75C
Availability: InStock

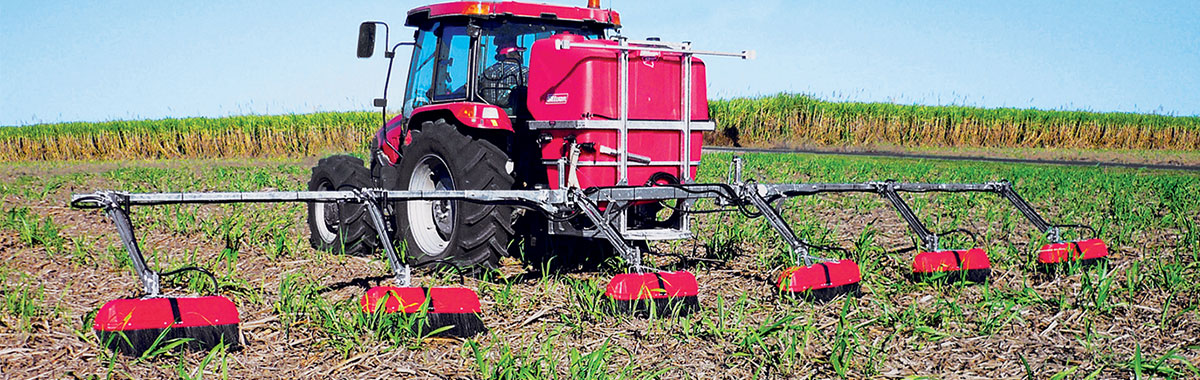

Linkage 1100 litre Cane Boom sprayer with 71L/min pump, no boom. Note: infield image shows 1100L with 6 row cane boom. Product image shows 600L linkage sprayer. Additional model available K11NH-125C with 121L/min (BP125/20) pump.

Enquire for price

Export as PDF Print

VIEW PARTS/ACCESSORIES

HIDE PARTS/ACCESSORIES

VIEW PARTS/ACCESSORIES

DISCLAIMER

The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.

Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.

PRICING & STOCK AVAILABILITY

Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.

Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body. BP75/20: 71 L/min. capacity 2000kPa pressure.

Nozzles: 2 x twin nozzle bodies per spray head and air induction nozzles.

Control: 4 outlet single lever control valve with pressure regulation and gauge.

Frame: Fully galvanised steel, cat II adjustable hitch.

Cane boom: 4 row or 6 row. Fully galvanised construction, to suit row widths from 1.5 – 1.8m with 500-1300mm shield spray head and brush skirts. Spray heads have heavy duty hinges to withstand drag, parallelogram tracking system.
