MURRAY AG LEVELLING HARROW – LEVELLING – SERIES 03

Name: MURRAY AG LEVELLING HARROW - LEVELLING - SERIES 03
SKU: MAE-L-03
Availability: InStock

Level your soil with ease. Designed to level soil and seedbeds complementing sowing or cultivation implements. Available in a heavy version if you require additional weight to work your land.

Enquire for price

Export as PDF Print

DISCLAIMER

The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.

Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.

PRICING & STOCK AVAILABILITY

Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.

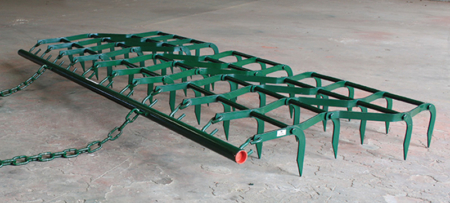

Murray Levelling Harrows are an excellent choice to complement sowing or cultivation implements. Designed to level soil and seedbeds, the flexible frame design provides durability in all soil types. 3 and 4 rank versions are suitable for use to cover seed in light to medium soils in conjunction with combines and seed drills. The 5 rank model is used in heavier soils to counter weed growth and break down large clods. It is a popular implement that complements cultivators, scarifiers or chisel plows.

If you require additional weight to work your land, a ‘Heavy’ version of our Series 03 Levelling Harrows is available. Made from heavier High Carbon Steel, the Tine Spacing remains the same as the standard version.

The Series 03 Levelling Harrow is available in either 3 or 4 row widths allowing extensions in increments of 235mm (9 ¼”) to suit primary machines of almost any width. This allows a combination of harrow sections to be configured to suit your application.

A full range of standard and heavy duty drawbars are available to correctly match your soil conditions and available working width of your equipment. Harrow sets complete with drawbars range from 2.31m (7’7”) to 5.58m (18’4”) in width.

Specifications
• High Carbon Cut Tines
• Tine Spacing 76mm (3”)
• Tine Length 190mm (7 1/2”) approx
• Centre to Centre of Front Hooks 235mm (9 1/4”)
• 3 Ranks – 9 or 12 Tines, 4 Ranks – 12 or 16 Tines, 5 Ranks – 15 or 20 Tines
