MURRAY AG PASTURE HARROW – PASTURELAND – SERIES 05

Name: MURRAY AG PASTURE HARROW - PASTURELAND - SERIES 05
SKU: MAE-PAST-05
Availability: InStock

Improve your pasture field. A light duty harrow specially designed for areas less than 40 hectares (100 acres). Used to aerate pastures, it will break up and spread organic matter. Features a drawbar, tripod sections and deep mesh chain. 3 point linkage hoist frame versions are available.

Enquire for price

Export as PDF Print

DISCLAIMER

The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.

Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.

PRICING & STOCK AVAILABILITY

Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.

The Murray Pastureland Harrow System is recommended for pasture establishment, maintenance and renovation applications. Ideal for breaking down and distributing animal manures and other organic matter evenly across the whole pasture, using a Series 05 will encourage pasture growth. This light duty harrow is suitable generally for pasture areas of less than 100 acres (40 hectares) and tows easily behind small and medium size tractors.

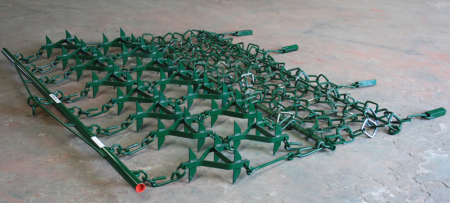

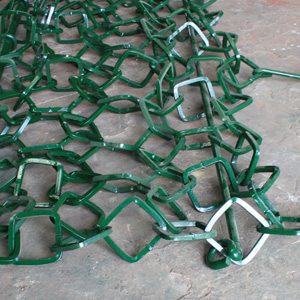

Murray Series 05 Pastureland Harrows utilise four rows of double-sided tripod tine units which slice through patts, clods and coarse vegetation. The tripod section is followed by heavy steel square chain mesh which further pulverises and spreads the manure and organic matter and revitalises the pasture. The “standard” single-mesh chain Murray Pastureland Harrow has 8 rows of chain complete with a spreader bar and drag weights. Where greater penetration and a more aggressive action is needed, the Murray “super” double-mesh chain Pastureland Harrow may be used, which has 15 rows of square chain mesh. The extra chain length and weight ensure a thorough processing of material.

The Murray Pastureland Harrow is available in six widths between 1.52 metres (5’) and 6.1m (20’) in “standard”/single-mesh and “super”/double mesh versions. Each set of Murray Pastureland Harrows is supplied complete with a steel drawbar.

The Series 05 Pastureland Harrows can be used in conjunction with the Murray Series 21 3-point linkage Harrow Hoist Frame for ease of transportation.

For larger field operations, Murray Agricultural Equipment manufactures the Series 20 Heavy Duty Pasture Harrow System.

Specifications
• Tine Spacing 51mm (2”)
• Tine Length 85mm (3 11/32”) approx
• Centre to Centre of Front Hooks 305mm (12”)
• Available in 2 chain mesh depths 0.76m (2’6”) and 1.5m (5’)
