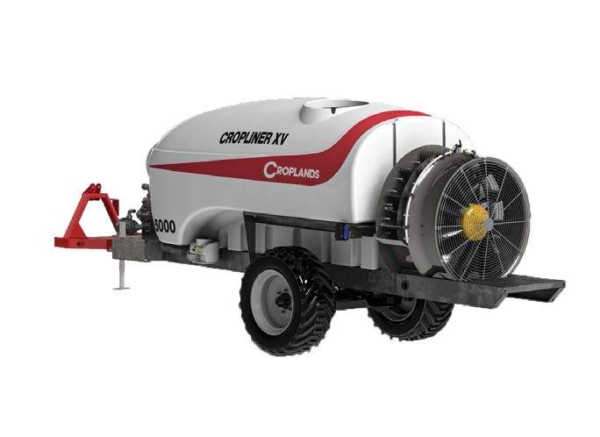

CROPLANDS CROPLINER XV SPRAYER

Name: CROPLANDS CROPLINER XV SPRAYER
SKU: CROPLANDS-10
Availability: InStock

The perfect solution for larger scale operations. Cropliner XV offers increased tank capacity and pump combinations on a new-heavy duty chassis frame, paired with the industry-leading 1060 dsv fan. It’s set to take air-blast sprayer efficiency to a whole new level.

Suits large tree crops, nuts, avocados, citrus

Enquire for price

Export as PDF Print

VIEW PARTS/ACCESSORIES

HIDE PARTS/ACCESSORIES

VIEW PARTS/ACCESSORIES

DISCLAIMER

The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.

Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.

PRICING & STOCK AVAILABILITY

Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.

TANK
• Impact resistance polyethylene tank with UV-stabilised finish
• Calibrated sight gauge
• Flip open filling lid with large strainer
• Quick fill system and suction probe fitted standard
• 5000 litre main tank with separate 10 litre fresh water tank

FAN
• Highly efficient FIENI 1060-DSV fan.
• Stainless steel volute
• Variable pitch, high strength, glass reinforced nylon blades – shaped for maximum air delivery with lowest possible input
• 2-speed heavy duty gearbox and centrifugal clutch
• Dual stainless-steel spray rings with 15 x brass roll-over nozzle bodies per side

PUMP
• AR BHS-200, High pressure (max. 50-bar), large capacity (194 L/min) brass head pump
* Note – pump output in litres per minute is at zero pressure, open flow

DRIVE
• SH5-AG Series PTO shaft supplied
• Heavy duty PTO drive shaft comes with safety covers and quick release pins
• Optional constant velocity (CV) shaft available – see options

CONTROLS
Manual remote mounted ARBMH50 controller standard.
Functions include left/right, shut-off, simultaneous shut-off, full bypass, pressurised bypass, manual pressure adjustment with pressure gauge.

Options:
• Electric – high pressure solenoid valves, 2-section in-cab control with electric pressure adjustment
• Croplands HV-2400, 2-section auto-rate controller
• HV-4000 auto-rate controller, 2-section (left/right) with optional 4-section control (left/right/upper/lower)
• Bravo 180 auto-rate controller, 2-section (left/right) with optional 4-section control (left/right/upper/lower)

AGITATION
Twin Supa-flo agitators.

FILTRATION
Full filtration system – tank filling basket, suction filter and optional high-pressure brass filters.

NOZZLES
Standard fitted with one set of (30) stainless-steel disc and brass cores; one set of (30) ALBUZ ceramic hollow cone nozzles – brown and yellow sizes fitted ex-factory.
CHASSIS

» Hot-dipped galvanised 2 x piece chassis frame
» Standard drawbar
» 6 x stud wheel hubs
» Rear bumper comes with leaf guard
» Single axle with suspension as standard.
» Optional tandem walking beam axle

WHEELS
» 2 x 400 – 22.5 wheels/tyres fitted as standard on single axle
» 4 x 400 – 15.5 wheels/tyres fitted on tandem axle
