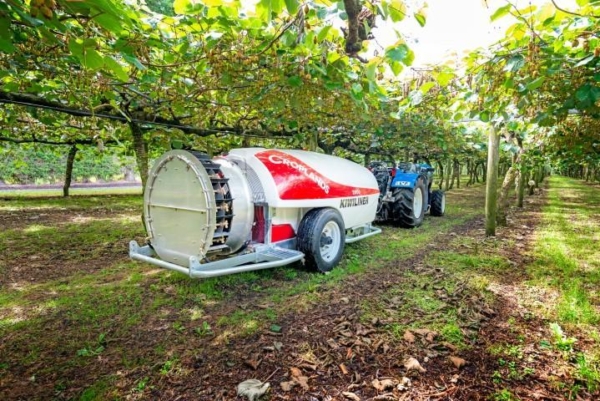

CROPLANDS KIWILINER SPRAYER
Designed specifically for spraying kiwifruit, where a shorter and lower profile is required.
Enquire for price
VIEW PARTS/ACCESSORIES
VIEW PARTS/ACCESSORIES
DISCLAIMER
The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.
Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.
PRICING & STOCK AVAILABILITY
Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.
TANK
2000 litre main tank with separate 120 litre flush tank. 4 litre hand-wash tank.
Impact resistant polyethylene tank with UV-stabilised finish.
Calibrated sight gauge on front and side, flip-open filling lid with large basket strainer, separate chemical Chem induction probe and 1¼” drain valve. Deep sump design for total draining and liquid pick-up in sloping ground.
FAN OPTIONS
• Kiwiliner – 820mm DSV Front-entry fan – stainless steel shroud and rear plate, downstream adjustable straightening vanes, NEW design glass-reinforced nylon polymer blades with adjustable pitch, 14 roll-over bodies per side, 2-speed oil-bath gearbox, centrifugal fan clutch. Optional second spray ring
PUMPS
ARBHS170 pump with brass heads and manifolds, oil-backed diaphragm type with chemical resistant diaphragms. 0-50 bar rated, 161 L/min (open-flow, zero pressure).
Optional ARBHS200 pump with brass heads and manifolds, oil-backed diaphragm type with chemical resistant diaphragms. 0-50 bar rated, 194 L/min (open-flow, zero pressure).
DRIVE (SH5AG)
Heavy duty PTO driveshaft comes with safety covers and quick release pins. Optional CV shaft.
CONTROLS
Remote mounted two-tap brass block controller with individual left/right shut-off, pressure adjustment and glycerine-filled gauge. Pressure and bypass regulator mounted on the pump. Optional electric and auto rate controllers – see options
AGITATION
Supa-flo agitator and full bypass while filling with PRV in bypass mode
FILTRATION
Lid strainer, large suction filter. Optional pressure filters.
NOZZLES
Brass swing-over nozzle bodies, automatic shut-off type when in the half-turn position.
All units supplied with one set of ceramic hollow cone ALBUZ nozzles. Discs and cores optional.
CHASSIS
• Hot-dipped galvanised, full-length with adjustable drawbar and single step, 6-stud wheel hubs, bumper bar comes with leaf guard. Side bumpers fitted standard for headland protection. Fixed axle standard; optional adjustable height and width axle.
• Jockey wheel supplied on all models
WHEELS
• Kiwiliner 2000 – steel rims, 27 x 9.5-15”
POWER REQUIRED – FAN ONLY
920mm DSV fan – minimum 37kW (50 hp) at PTO
820mm FE fan – minimum 34kW (45 hp) at PTO
SPECIFICATIONS
| Make | |
|---|---|
| Model | |
| Tank Capacity | |
| Fan Size | |
| Pump | |
| Power Required | |
| SKU |
