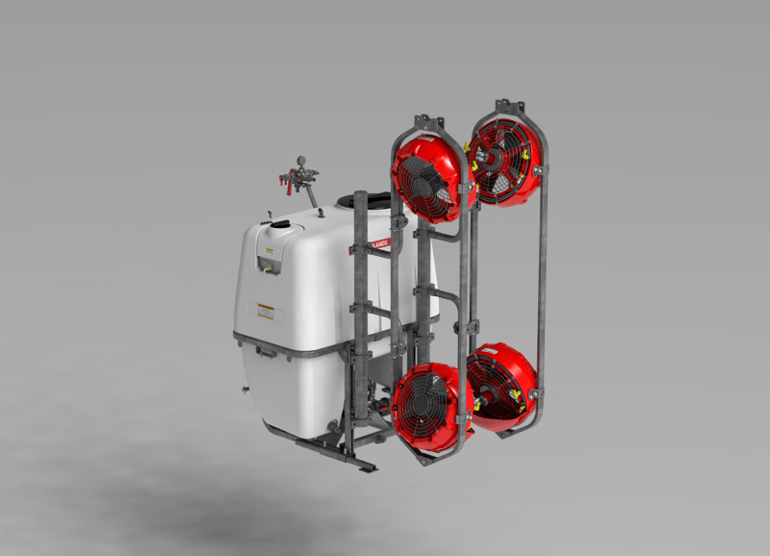

CROPLANDS QUANTUM MIST™420 LINKAGE SPRAYERS

Name: CROPLANDS QUANTUM MIST™420 LINKAGE SPRAYERS
SKU: CROPLANDS-06
Availability: InStock

Croplands Quantum Mist 420 Linkage Sprayers Are Ideal For Narrow Row Spacings Or Challenging Topography.

Delivering Premium Crop Protection Through The New QM-420 Fan With Dual Spray Ring And Fan Frame Design.

Enquire for price

Export as PDF Print

VIEW PARTS/ACCESSORIES

HIDE PARTS/ACCESSORIES

VIEW PARTS/ACCESSORIES

DISCLAIMER

The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.

Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.

PRICING & STOCK AVAILABILITY

Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.

TANK
600, 800 or 1000 litre polyethylene tank with screw type lid, filling strainer and drain outlet. Complete with flush tank and hand wash tank.

FANS
QM-420 (420mm) hydraulic drive spray fans. Two QM-420 fans per row.

The QM-420 fan features:
1. Turbulent, high volume air for optimum canopy penetration and coverage
2. Dual spray rings are fitted with a total of ten x nozzles. Five nozzles fitted to the low volume spray ring, and five nozzles fitted to the medium volume spray ring. When combined, deliver a high volume application rate (three tiered spraying)
3. Protective new fan frame mounting system which enables precise fan angles to be easily set up and maintained using stainless steel indexing brackets
Leaf guards are fitted to the two lower fans behind the sprayer on the QM-420 fans.
Manually adjustable fan speed control is standard. Electric control is optional with suitable controller.

PUMP
AR oil-backed triple diaphragm type poly pump with chemical resistant diaphragms. AR-80 LFP (76 L/min) 0–20 bar.

DRIVE
Tractor PTO drive shaft to pump, drive shaft supplied.

CONTROLS
Remote mount, five outlet, UCM controller with pressure gauge and pressure adjustment.

AGITATION
Single venturi agitator.

FILTRATION
Tank filling basket, suction filter.

NOZZLES
ALBUZ 80º ceramic hollow cone nozzles fitted as standard (brown and yellow). ALBUZ 60º ceramic hollow cone nozzles are also available in the same size range if specified.
» 420 mm fan – fitted with dual spray rings. Five x nozzles per spray ring (ten x nozzles in total). A manual shut off valve is fitted to each spray ring to for low, medium or higher volume rates which is manually set from the ground.

CHASSIS
Heavy duty, galvanised frame.
