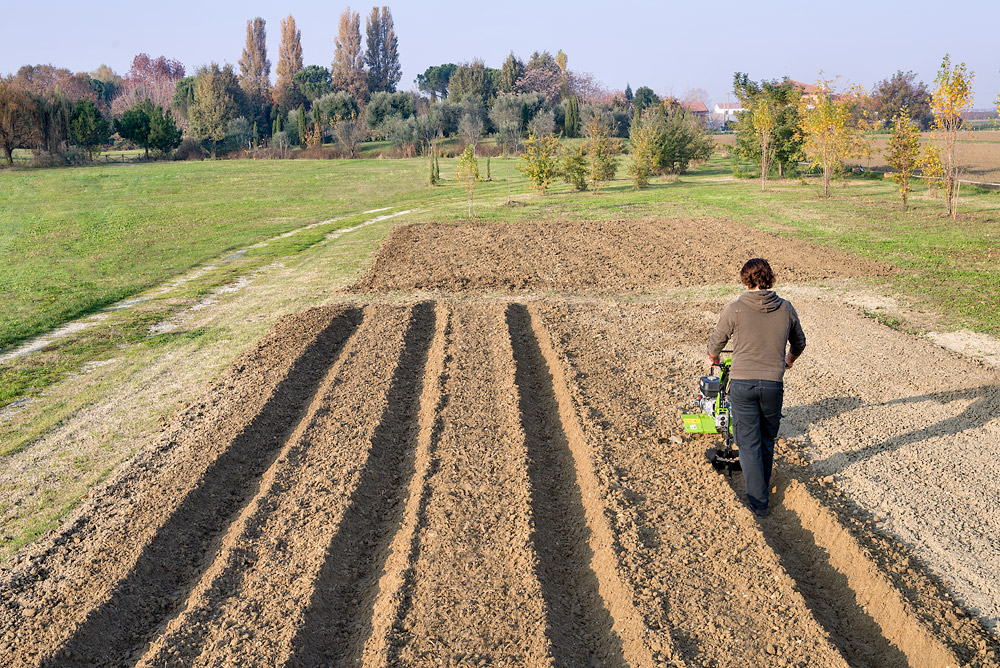

GRILLO 11500 ROTARY HOE
The Grillo 11500 rotary hoe offers maximum performance and robustness. The mechanical gearbox with oil bath gears has 3 forward gears plus reverse.
The 99 cm wide hoe with a 32 cm diameter of the hoes is made up of 6 hoe stars and side discs. By using the enlargement or disassembly kit of hoes stars it is possible to obtain different milling widths.
The machine has two power take-offs , one for spraying pumps and one synchronized with the gearbox.
Enquire for price
VIEW PARTS/ACCESSORIES
VIEW PARTS/ACCESSORIES
DISCLAIMER
The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.
Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.
PRICING & STOCK AVAILABILITY
Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.
Engine: Kohler KD15 350, Start recoil starter, Supply diesel, Displacement 349 cc, 1 Cylinder, Power 7.5 HP (5.5 kW), Air cooled, Oil bath air filter
Engine: Kohler KD15 350, Start recoil starter and electric with 12V battery, Supply diesel, Displacement 349 cc, 1 Cylinder, Power 7.5 HP (5.5 kW), Air cooled, Oil bath air filter
Engine: Grillo GR 300, Start recoil starter, Supply fuel, Displacement 302 cc, 1 Cylinder, Power 9.3 HP (6.8 kW), Air cooled, Dry air filter
Engine: Grillo EX27 OHC, Start recoil starter, Supply fuel, Displacement 265 cc, 1 Cylinder, Power: 8.3 HP (6.1 kW), Air cooled, Dry air filter
Fuel tank capacity: 5.5 L eng. GR 300 OHC – 4.3 L eng. 15 LD 350
Transmission: with oil bath gears
Gearbox: 3 forward gears + 1 reverse gear
Clutch: conic active
Standard rotary hoe: With 6 hoes system and side discs, working width 99 cm. With hexagonal shaft 2.7 cm
Hoes system diametre: 34 cm
Working width area with side disks: Adjustable at 72 and 99 cm (125 cm with extension kit cod. 933112)
Working depth area without side disks: Adjustable at 59 and 86 cm (112 cm with extension kit cod. 933112)
Working depth: 33 cm
Max. revolutions hoe: 1st gear 53 rpm – 2nd gear 123 rpm – 3rd gear 162 rpm – reverse gear 53 rpm
P.T.O.: 2 P.T.O: a superior P.T.O. running at the engine in anti-clockwise rotation, 11UNI 221. A second inferior synchronised P.T.O. with gearbox speeds in clockwise rotation 13 UNI 221
Handlebar: height and side adjustment. Fitted on anti-vibration blocks
Weight: 121 kg with eng. KD15-350 with electric starter – 110 kg with eng. KD15-350 with recoil starter – 90 kg with eng. EX 27 – 92 kg with eng. GR 300
