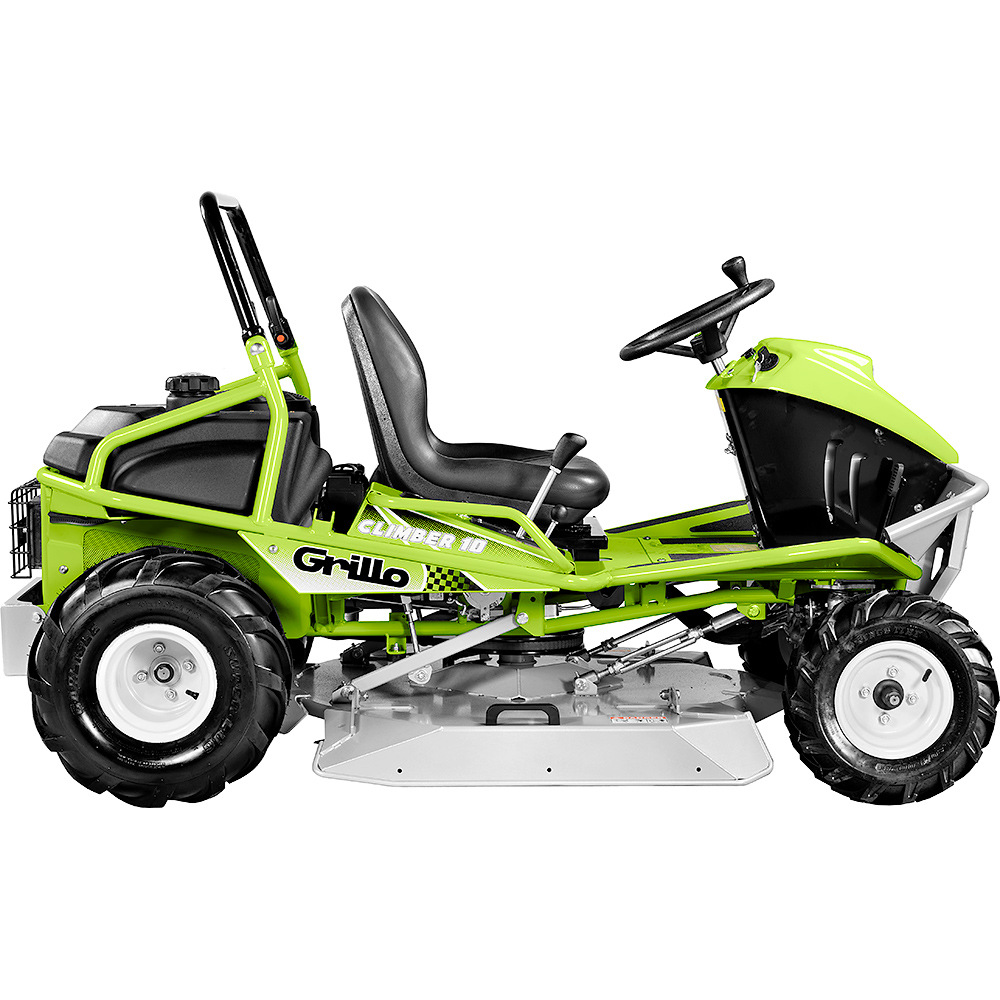

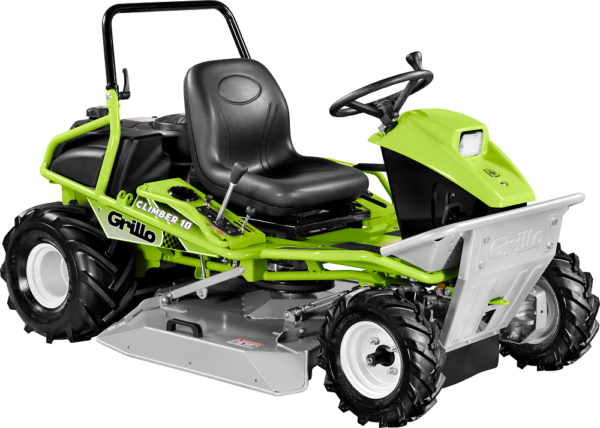

GRILLO CLIMBER 10 AWD 22

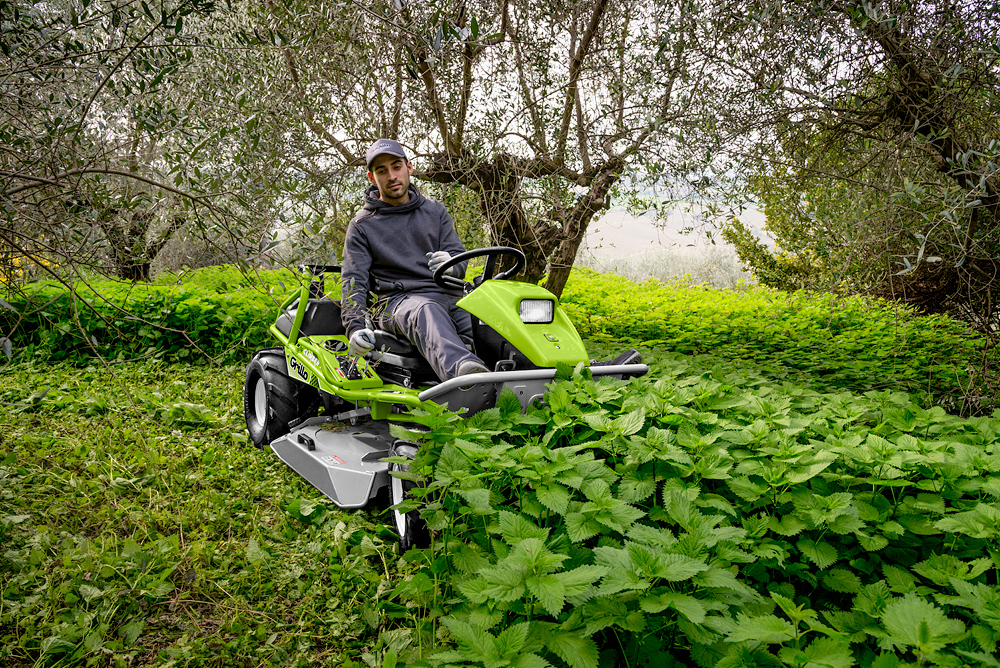

Grillo Climber 10 AWD 22 is an exceptional flail mower on slopes. The permanent 4-wheel drive together with the powerful engine, with 22 HP at the bench, 18 HP net, make it brilliant even on steep slopes and on terrains with reduced grip.
The cutting yield even in very high grass and shrubs with a diameter up to 25 mm make the Climber 10 an ideal machine in agriculture and for professional use.
The compact dimensions, designed for the best performance on slopes and the Kanzaki hydrostatic transmission with differential lock of the rear axle make it a safe mower for the user, reliable in every situation and exceptionally stable.
Enquire for price
VIEW PARTS/ACCESSORIES
VIEW PARTS/ACCESSORIES
DISCLAIMER
The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.
Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.
PRICING & STOCK AVAILABILITY
Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.
Engine: Briggs & Stratton 7220 Professional Series V-Twin, Start electric, with 12 V battery, Supply fuel, Displacement 656 cc, 2 Cylinders, Power 18 HP (13.2 kW) – Gross power 22 HP, Air cooled, Dry air filter
Fuel tank capacity: 13 L
Gearbox: 4-wheel-drive hydrostatic transmission
Clutch: Electromagnetic clutch with P.T.O and blade brake.
Cutter deck: Side and rear discharge
Cutting configuration: 1 rotating blade
Cutting width: 93 cm
Cutting height: From 3,5 cm to 13,5 cm with continuous adjustment
Peripheral blade speed: 83 m/1″
Differential locking: On the rear axle, with pedal engagement.
Front tyres: 4.00-8 TRACTOR, puncture proof treated as standard feature.
Rear tyres: 20×10.00-8 TRACTOR
Speed: Continuously variable from 0 to 9 km/h + reverse speed from 0 to 8 km/h.
Inner turning radius: 70 cm
Seat: Sprung and adjustable comfort seat, equipped with roll-bar.
Parking brake: On the rear wheels with lever engagement
Mowing capacity per hour (indicative): 7200 m^2/h
Standard features: Tow bar and front LED headlight
Length: 206 cm
Width: 103 cm
Height: 118,5 cm
Weight: 345 kg
