GRILLO FD 2200 STAGE5 4WD MOWER

Name: GRILLO FD 2200 STAGE5 4WD MOWER
SKU: GRILLO-FD2200
Availability: InStock

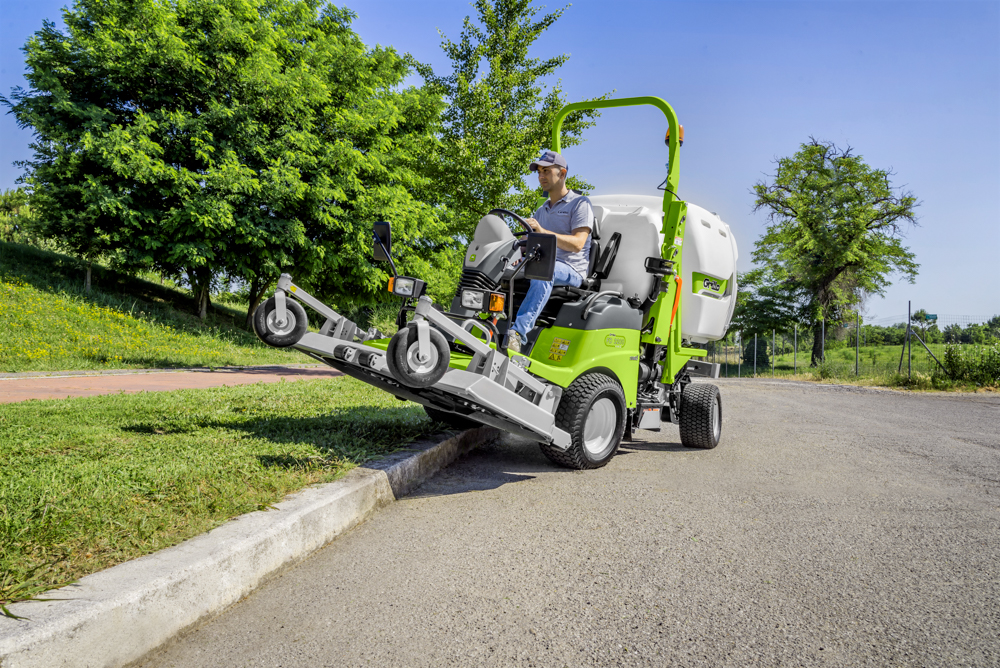

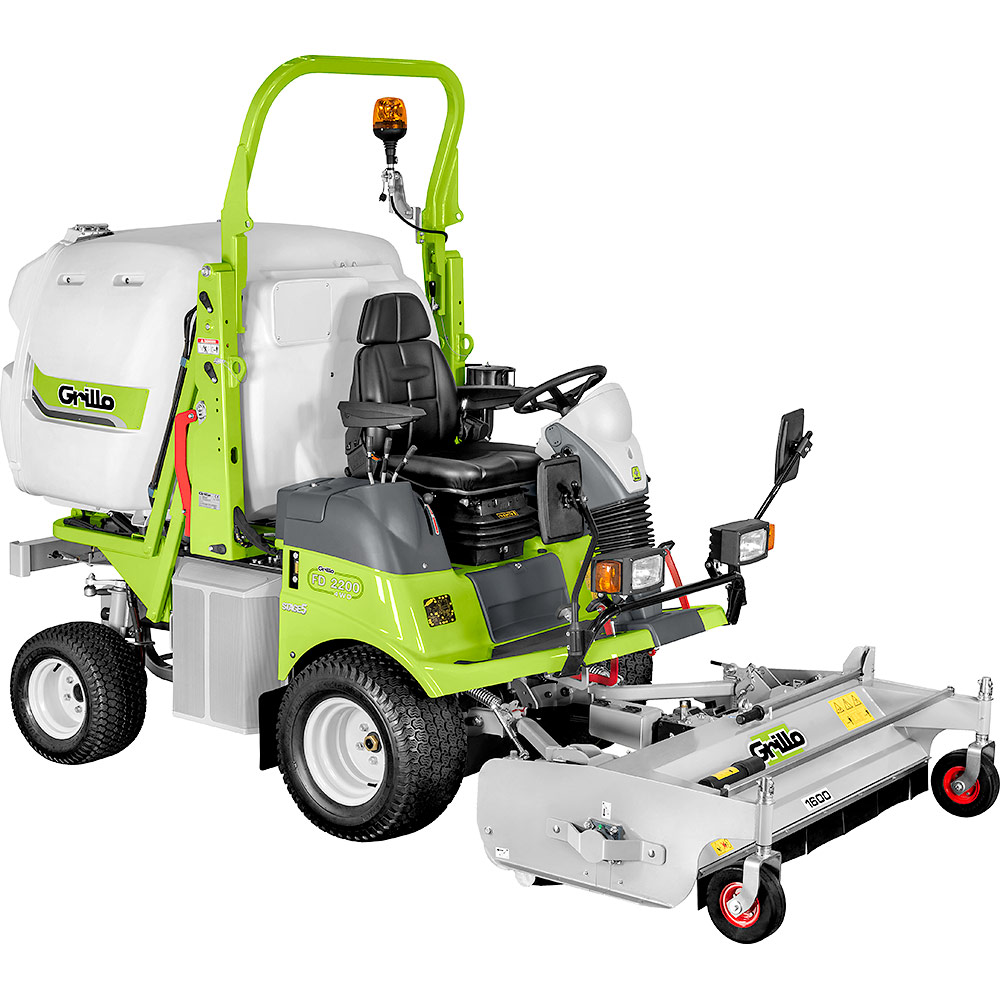

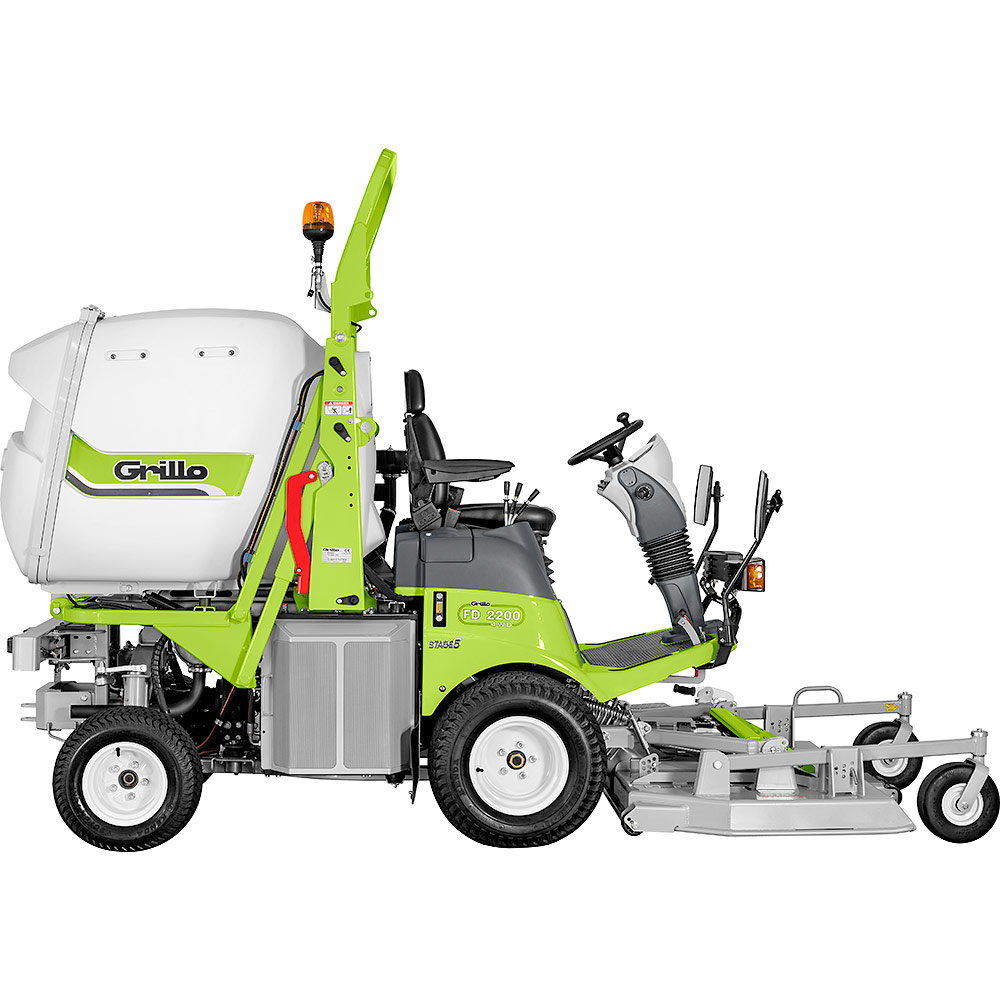

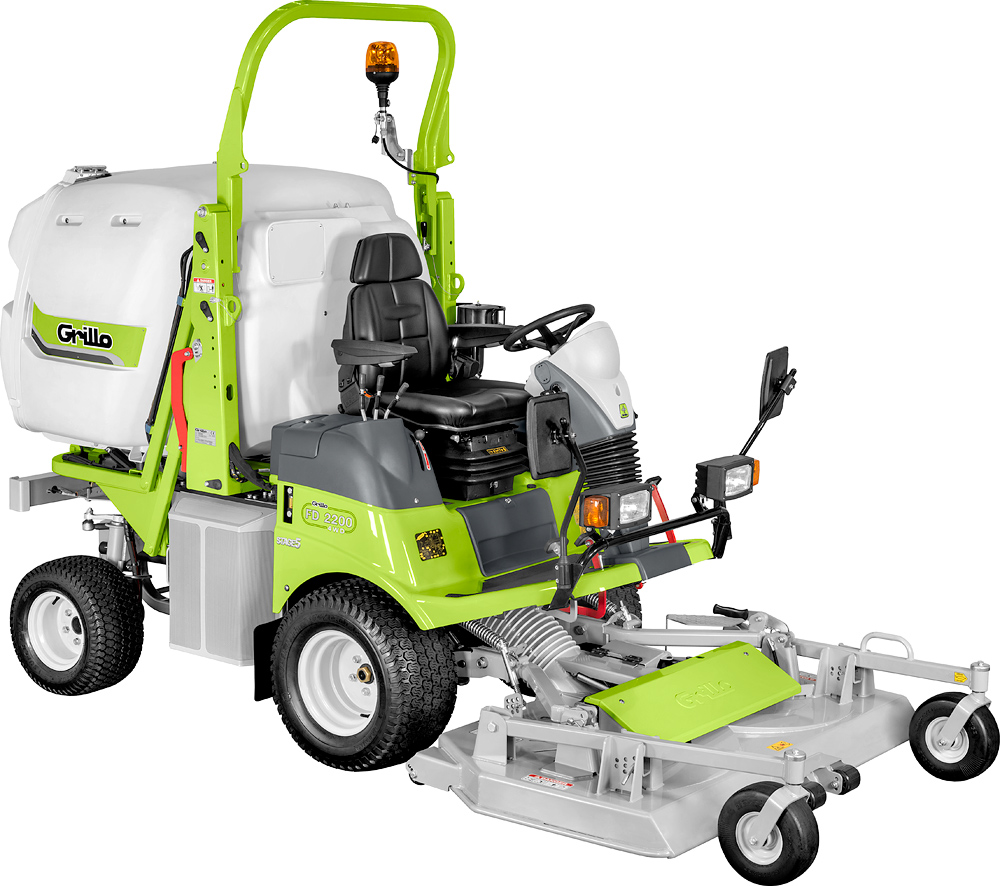

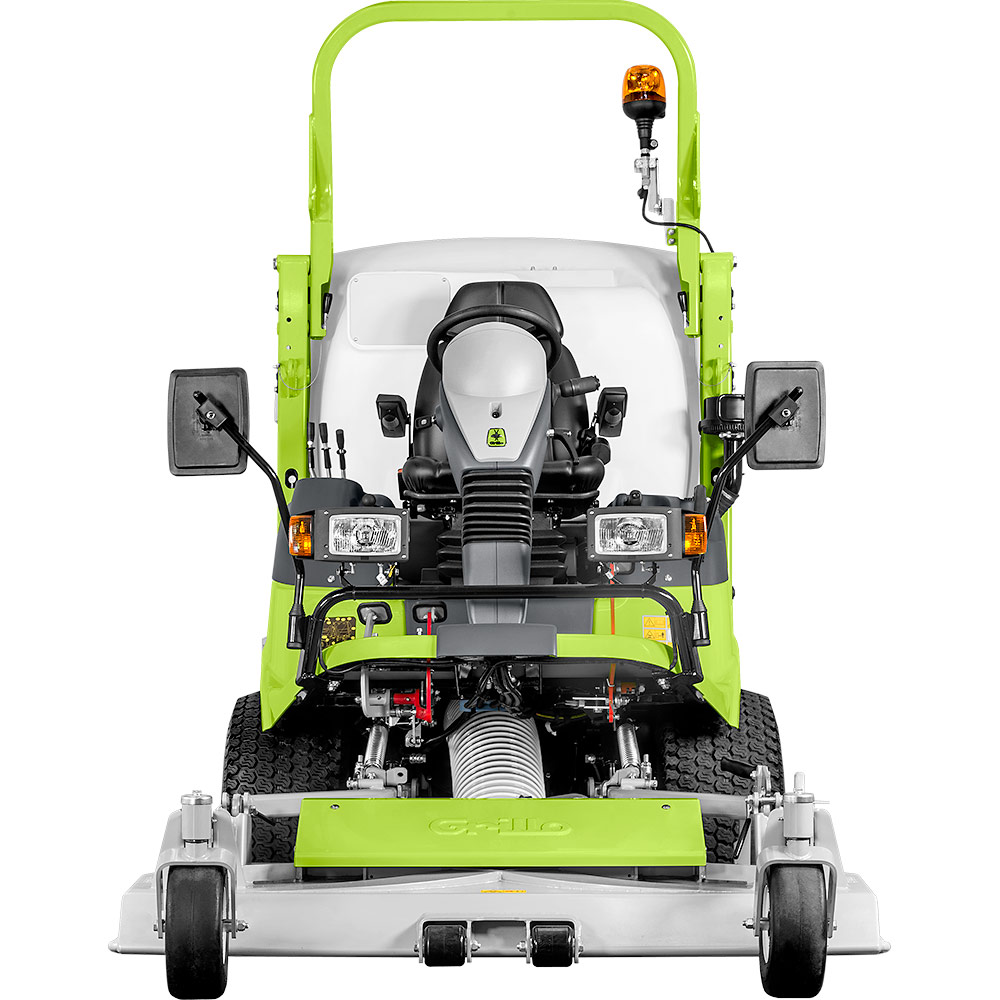

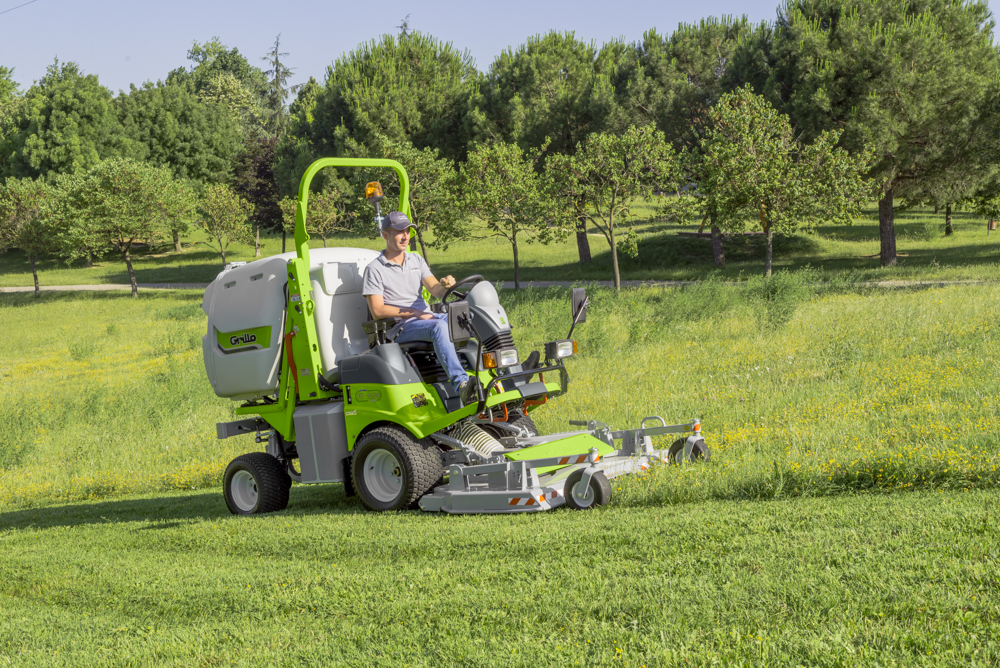

Grillo FD2200 permanent 4WD, with front cutting deck, high discharge grass collector and a turning radius of only 62 cm, it is easy to handle and stable on slopes!

The engine is of the latest generation, powerful and reliable, has low polluting emissions and meets the international STAGE 5 standards. The most demanding greenery maintainer and attentive to a quality cut will appreciate the qualities of the plate with collection combined with a powerful hydraulic loading turbine, the 1200 L capacity grass-catcher basket and the disengagement of the blades is automatic basket full.

Enquire for price

Export as PDF Print

VIEW PARTS/ACCESSORIES

HIDE PARTS/ACCESSORIES

VIEW PARTS/ACCESSORIES

DISCLAIMER

The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.

Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.

PRICING & STOCK AVAILABILITY

Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.

Engine: Yanmar 3TNV88C Stage5, Start electric, with 12 V battery, Supply diesel, Displacement 1642 cc, 3 Cylinders, Power 37 HP (27.5 kW), Liquid cooled with electric impeller and equipped with automatic radiator cleaning device, Dry air filter with interchangeable filter cartridges, safety filter and prefilter
Fuel tank capacity: 50 L
Hydraulic oil tank: 25 L
Traction: hydraulic, 4 wheel drive (permanent even with narrow turning radius)
Gearbox: hydrostatic transmission with hydraulic motors on the 4 wheels
Clutch: Hydraulic with electric control activated through PTO with blade brake
Cutting height: Adjustable at 25 – 35 – 50 – 60 – 75 – 85 – 95 – 110 mm
Grass collector capacity: 1200 L
Grass catcher charging system: Charging turbine, 400 mm diameter, equipped with a hydraulic engine as well as a safety valve in order to avoid accidental damages. Independent activation from the cutting deck. Grass catcher equipped with motorised baffle inside the for even filling.
Grass collector discharging system: Hydraulic grass catcher emptying with automatic opening
Maximal discharging height: 230 cm
Rear projection: 30 cm
Differential locking: Self-engaging and manual by pushing the button
Front tyres: Turf 24×12.00-12
Rear tyres: Turf 20×10.00-10

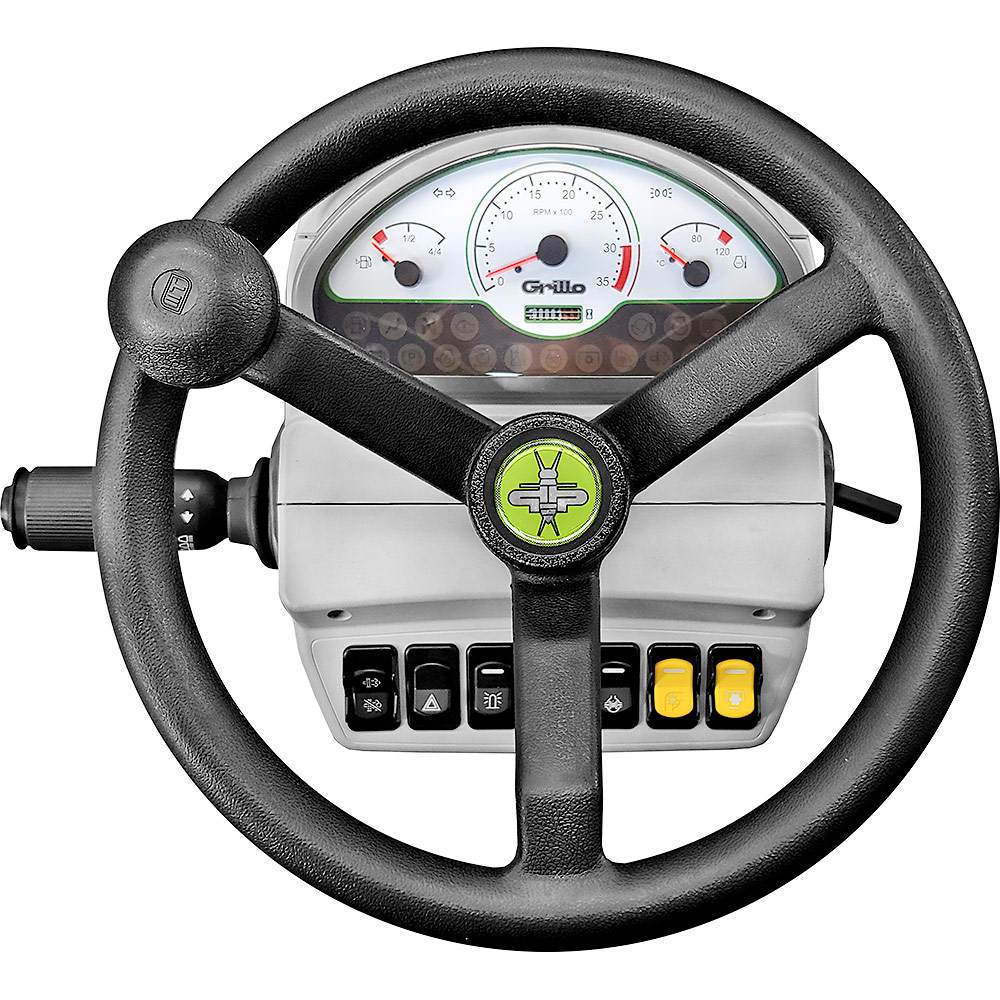

Steering system: Hydro-steer
Speed: Continuously variable from 0 to 20 km/h
Inner turning radius: 62 cm
Seat: Comfortable seat equipped with springs with arm-rests and adjustable
Mowing capacity per hour (indicative): 15500 m^2/h

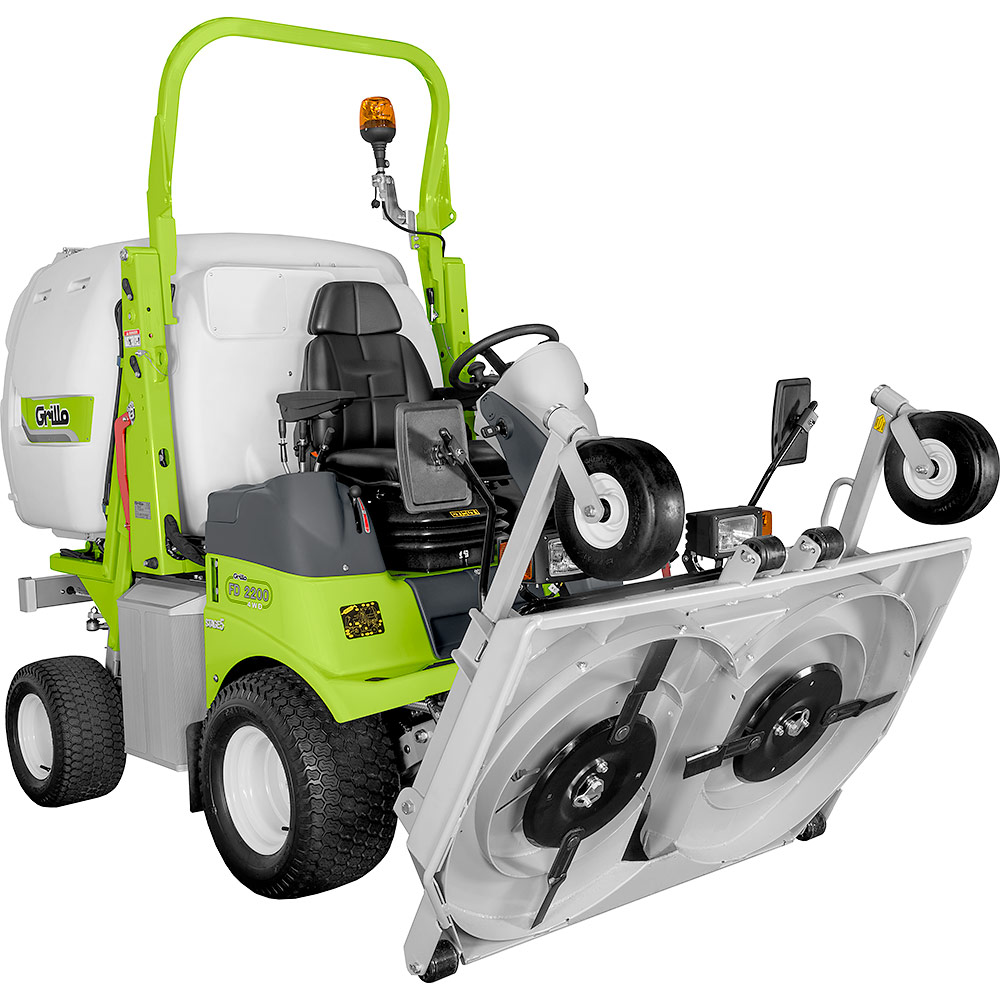

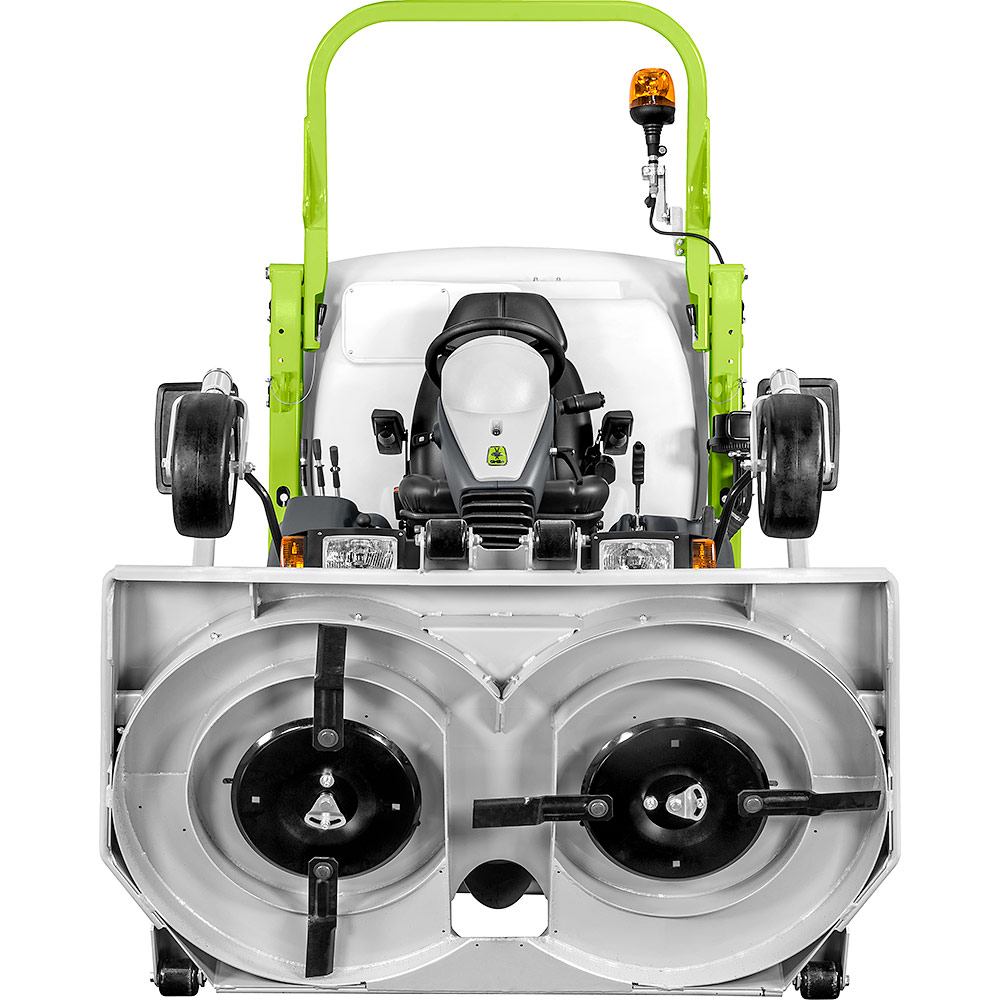

Standard features: Automatic disengagement of blades and turbine when the grass catcher is full. Hydraulic cutting deck lifting and emptying. Lights and indicator kit
Length: 261 cm without cutting deck – 347 cm with cutting deck [cod. 9L9611]
Width: 138 cm without cutting deck – 162 cm with cutting deck [cod. 9L9611]
Height: 183 cm with the roll bar let down – 243 cm with roll bar or cabin
Distance between axles: 126 cm
Clear span from the ground: 16 cm
Weight: 1248 kg without cutting deck – 1519 kg with cutting deck [cod. 9L9611]

SPECIFICATIONS

Make	Grillo
Model	FD 2200
Engine	Yanmar 3TNV88C Stage5
CC's	1642cc
Fuel Capacity	50L
Weight	1248kg
Starter	electric
Drive System	HST
Horsepower	37 HP (27.5 kW)
SKU	GRILLO-FD2200
