GRILLO G 110 WALK BEHIND ROTARY HOE

Name: GRILLO G 110 WALK BEHIND ROTARY HOE
SKU: GRILLO-G110
Availability: InStock

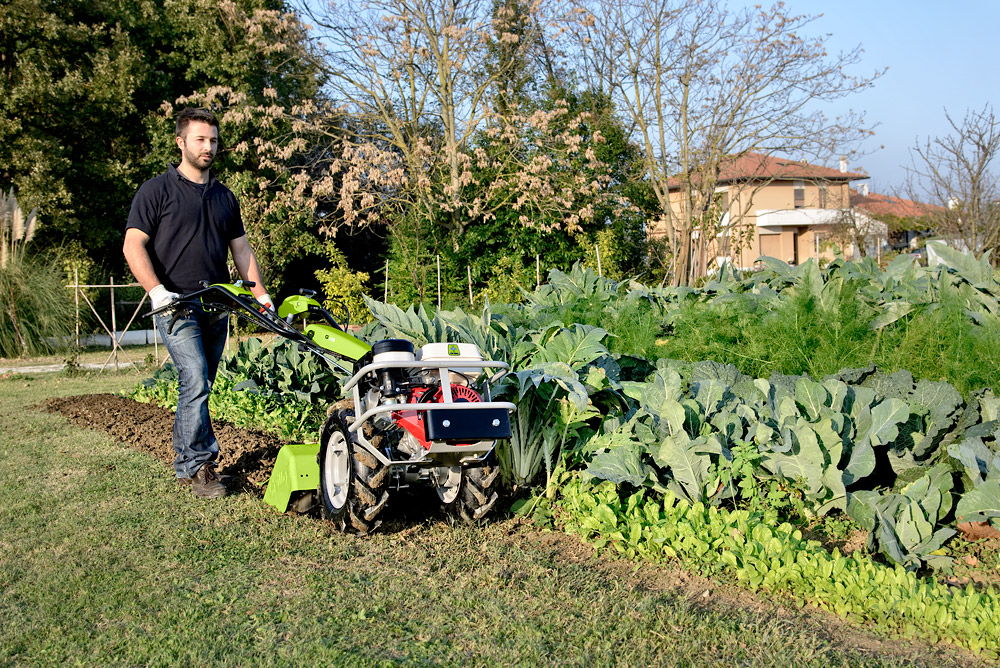

The Grillo G110 is an ideal walking tractor for working in agriculture, horticulture, in vegetable plots and gardening in large areas.
It is a well-balanced machine, fitted with a 6-speed gearbox with 3 forward gears + 3 reverse gears. The differential lock comes as a standard feature.
Despite its devices, such as active clutch and automatic reverse gear decelerator, this walking tractor can be safely handled by the user.

Enquire for price

Export as PDF Print

VIEW PARTS/ACCESSORIES

HIDE PARTS/ACCESSORIES

VIEW PARTS/ACCESSORIES

DISCLAIMER

The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.

Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.

PRICING & STOCK AVAILABILITY

Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.

Engine: Honda GX390 OHV, Start recoil starter, Supply fuel, Displacement 389 cc, 1 Cylinder, Power 11.7 HP (8.7 kW), Air cooled, Oil bath air filter
Engine: Kohler KD15 440, Start recoil starter and electric with 12V battery, Supply diesel, Displacement 441 cc, 1 Cylinder, Power 11 HP (8.1 kW), Air cooled, Oil bath air filter
Fuel tank capacity: 6.1 Lt. (GX390) – 5.0 Lt. (KD15 440)
Transmission: Gear type in oil bath.
Gearbox: With inverter. Walking tractor version: 3 forward gears + 3 reverse gears. Sickle bar version: 3 forward gears + 3 reverse gears.
Reverse gear unit: Rapid through lever.
Clutch: Conic and active.
Standard rotary hoe: Adjustable, with tines x4. Working width: 68 cm.
Hoes system diametre: 315 mm
Working width: Adjustable 37, 47, 58, 68 cm.
Working depth: 16 cm.
Item no. standard rotary hoe: 984611
P.T.O.: 965 revolutions independent from gearbox (walking tractor version: clockwise rotation / sickle bar version: anticlockwise rotation).
Differential locking: With lock device through lever.
Available tyres: 4.00-10, 5.00-10 (5.00-12 for furrower and ploughing only), wide steel wheels 40×10 cm, Turf wheels 20×10.00-8 (item 937112 needed)
Speed: With 5.00-10 wheels: 1st gear 1,3 km/h, 2nd gear 2,4 km/h, 3rd gear 5,0 km/h. I° Reverse gear 0,7 km/h, II° Reverse gear 1,5 km/h, III° Reverse gear 3,2 km/h.
Service brake: Drum brake, as a standard feature.
Handlebar: With height and side adjustment and reversible.
Safety devices: Active clutch, reverse speed – PTO cut out, automatic decelerator in reverse speed.
Weight: 138 kg (GX390) with cm 68 rotary hoe and 5.00-10 wheels- 164 kg (KD15 440) with cm 68 rotary hoe and 5.00-10 wheels.
