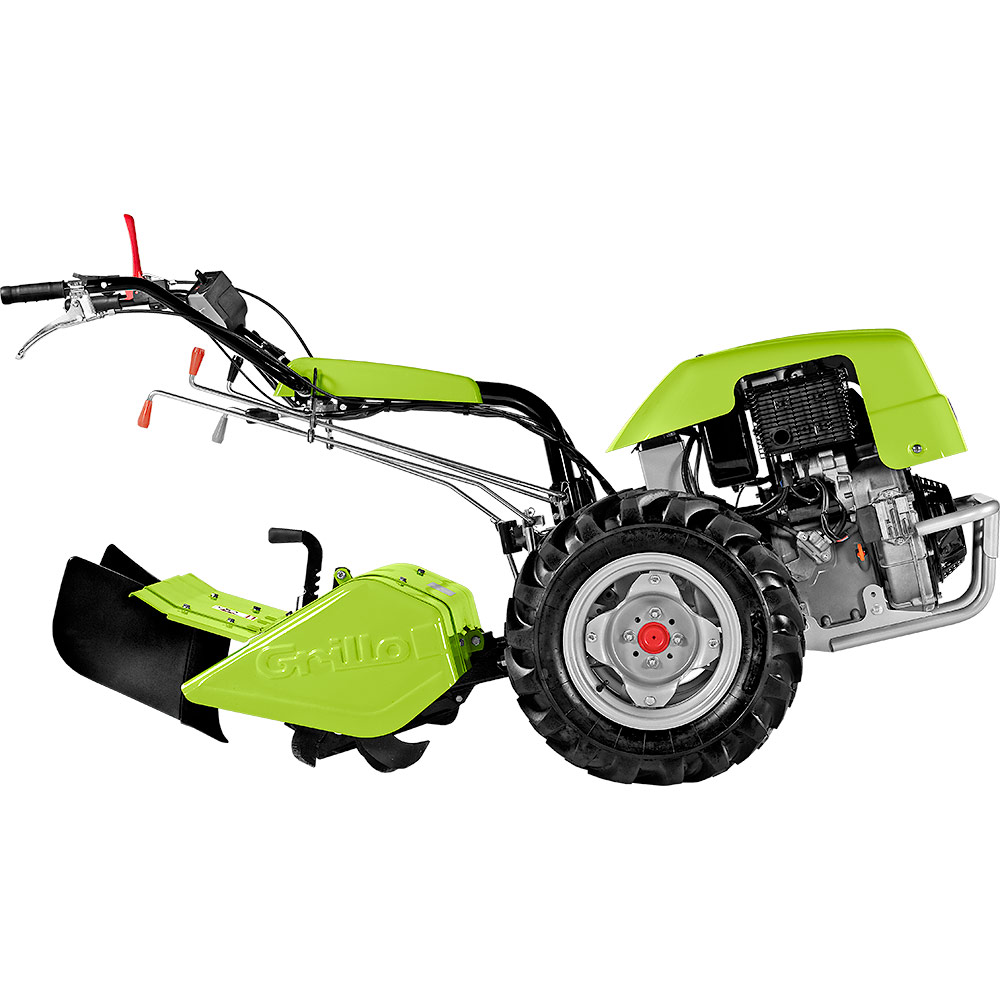

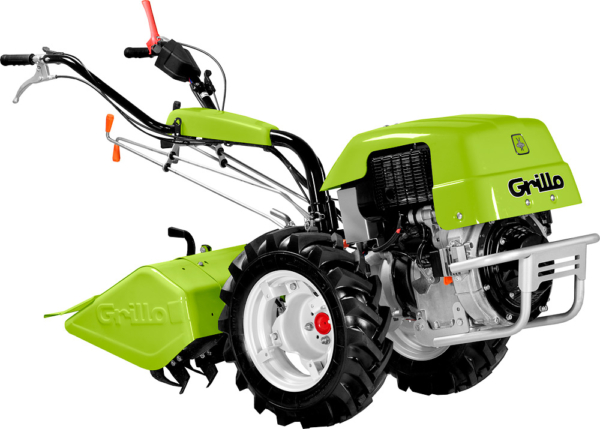

GRILLO G 131 WALK BEHIND ROTARY HOE

Name: GRILLO G 131 WALK BEHIND ROTARY HOE
SKU: GRILLO-G131
Availability: InStock

The G 131 is an ideal walking tractor for working in large areas in agriculture, horticulture, and in vegetable gardens. It is a well-balanced machine, fitted with a 6-speed gearbox in oil-bath with 4 forward gears + 2 reverse gears.

Enquire for price

Export as PDF Print

VIEW PARTS/ACCESSORIES

HIDE PARTS/ACCESSORIES

VIEW PARTS/ACCESSORIES

DISCLAIMER

The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.

Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.

PRICING & STOCK AVAILABILITY

Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.

Engine: Kohler 3LD510, Start electric, with 12 V battery, Supply diesel, Displacement 510 cc, 1 Cylinder, Power 12.2 HP (9 kW), Air cooled, Oil bath air filter
Fuel tank capacity: 5.3 L
Transmission: with oil bath gears
Gearbox: With clutch engagement. The walking tractor version has 4 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears
Clutch: single dry disc with manual control

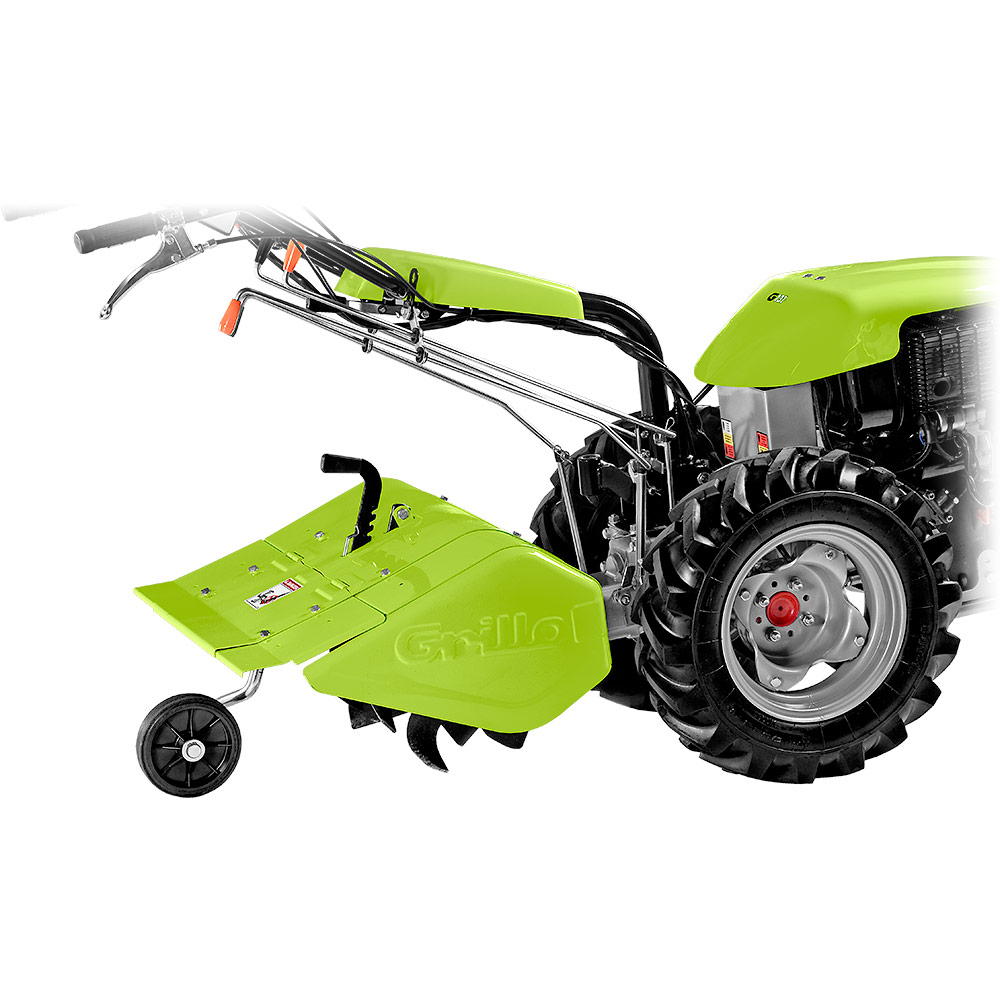

Standard rotary hoe: Adjustable rotary hoe with x 4 tines Working width 700 mm
Hoes system diametre: 360 mm
Working width: Adjustable at 550 and 700 mm (850 mm with extension kit cod. 930312)
Working depth: 18 cm
Item no. standard rotary hoe: 989011
P.T.O.: a higher one (upon request) synchronised with the gearbox; one lower at 1028 rpm in clockwise rotation with engine at 3000 rpm
Differential locking: Differential with locking device by lever on the handlebar
Available tyres: Tractor 5.00-12 wheels (adjustable disks) and 6.5/80-12 wheels (adjustable disks). Wide steel wheels having diametre 46 x 12 cm
Speed: In the walking tractor version with 5.00-12 wheels 1st gear 1,2 km/h, 2nd gear 2,4 km/h, 3rd gear 3,4 km/h, 4th gear 7,1 km/h, 1st reverse gear 1,7 km/h, 2nd reverse gear 3,5 km/h. In the sickle bar version with 5.00-12 wheels 1st gear 1,7 km/h, 2nd gear 3,5 km/h , 1st reverse gear 1,2 km/h, 2nd reverse gear 2,4 km/h
Service brake: Brake drum (kit upon request cod. 978611)

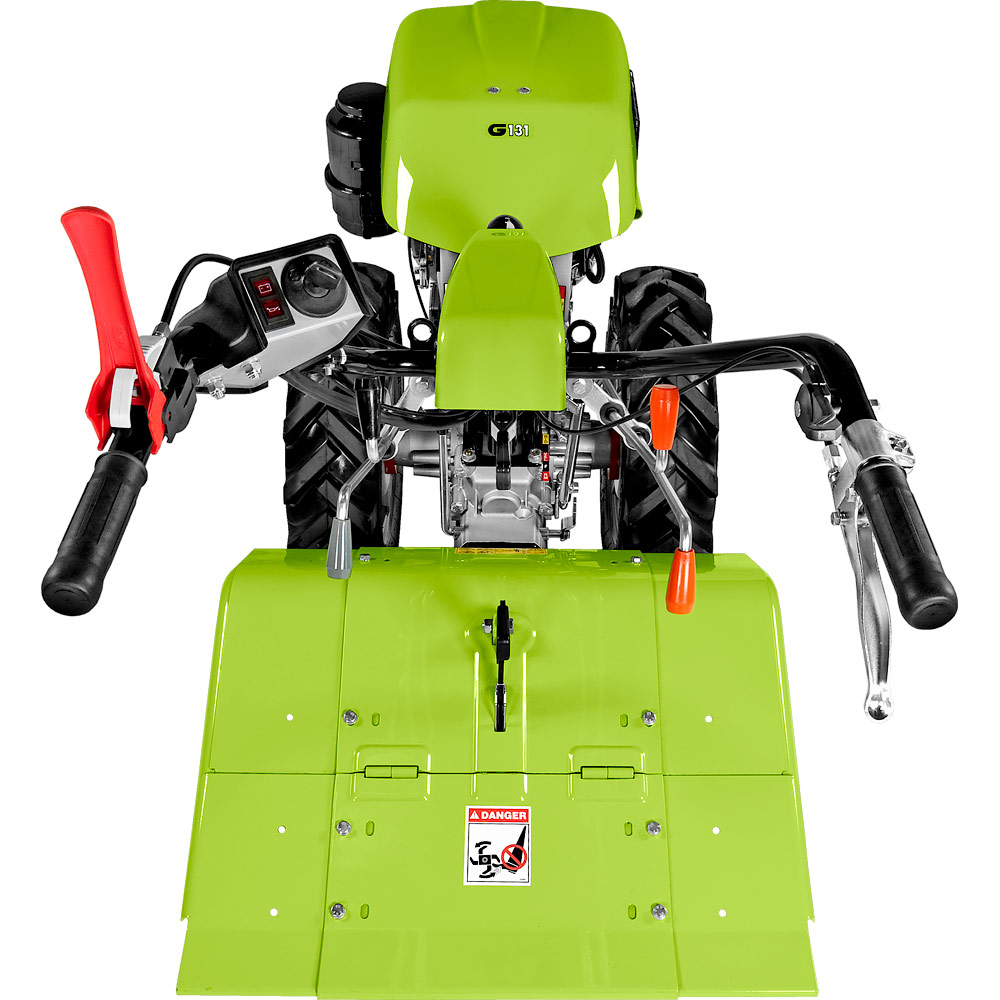

Handlebar: height and side adjustment, reversible
External sizes of the wheels: 550, 600, 700 or 750 mm with 5.00-12 wheels
Weight: 208 kg
