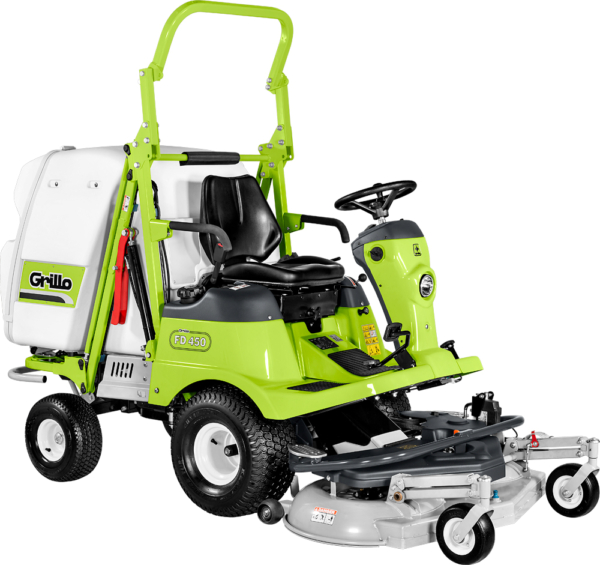

GRILLO FD 450 MOWER
A professional hydrostatic mower with front-mounted cutter deck with a grass-catcher capacity of 450 Lt. The grass-catcher discharge height is 170 cm with an ejection of 45 cm; the cutting and high performance collection of this model are its best features.
The innovative cutting system “Grillo Overblow” allows tremendous acceleration of the grass/air flow into the discharge chute considerably increasing its collection capability, even in damp,wet conditions whilst at the same time keeping its noise level of the whole cutting/collecting system extremley low.

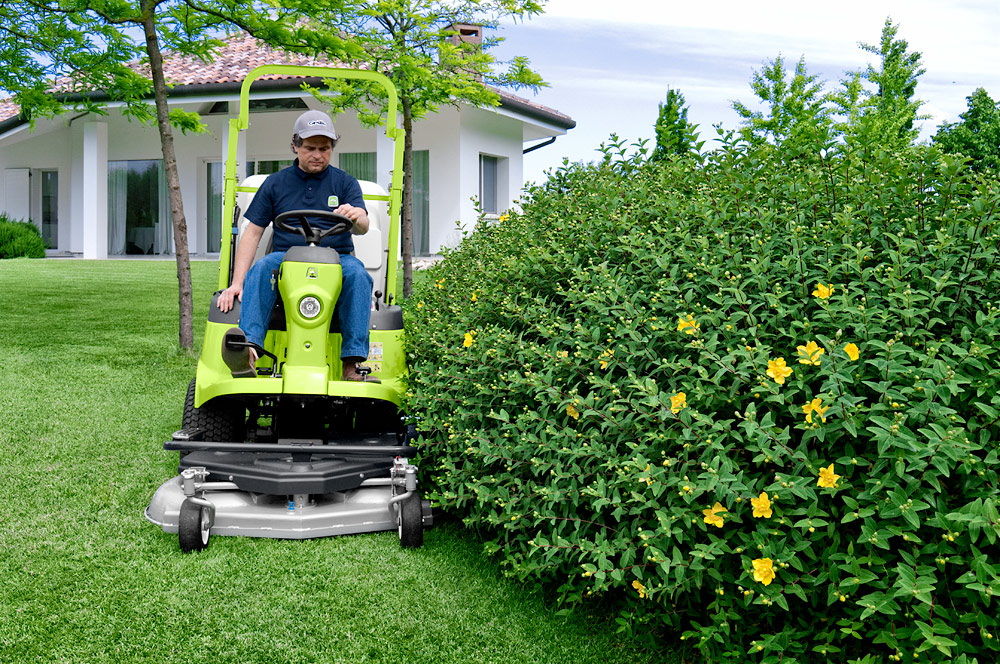

The front-mounted cutter deck gives the operator excellent visibility of his working area.
Enquire for price
VIEW PARTS/ACCESSORIES
VIEW PARTS/ACCESSORIES
DISCLAIMER
The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.
Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.
PRICING & STOCK AVAILABILITY
Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.
Engine: Briggs & Stratton 7220 Professional Series V-Twin, Start electric, with 12 V battery, Supply fuel, Displacement 656 cc, 2 Cylinders, Power 18 HP (13.2 kW) – Gross power 22 HP, Air cooled, Dry air filter
Fuel tank capacity: 17 litres (reserve tank 2,5 litres)
Transmission: Hydrostatic transmission with differential locking
Clutch: Electromagnetic PTO clutch with magnetic blade brake

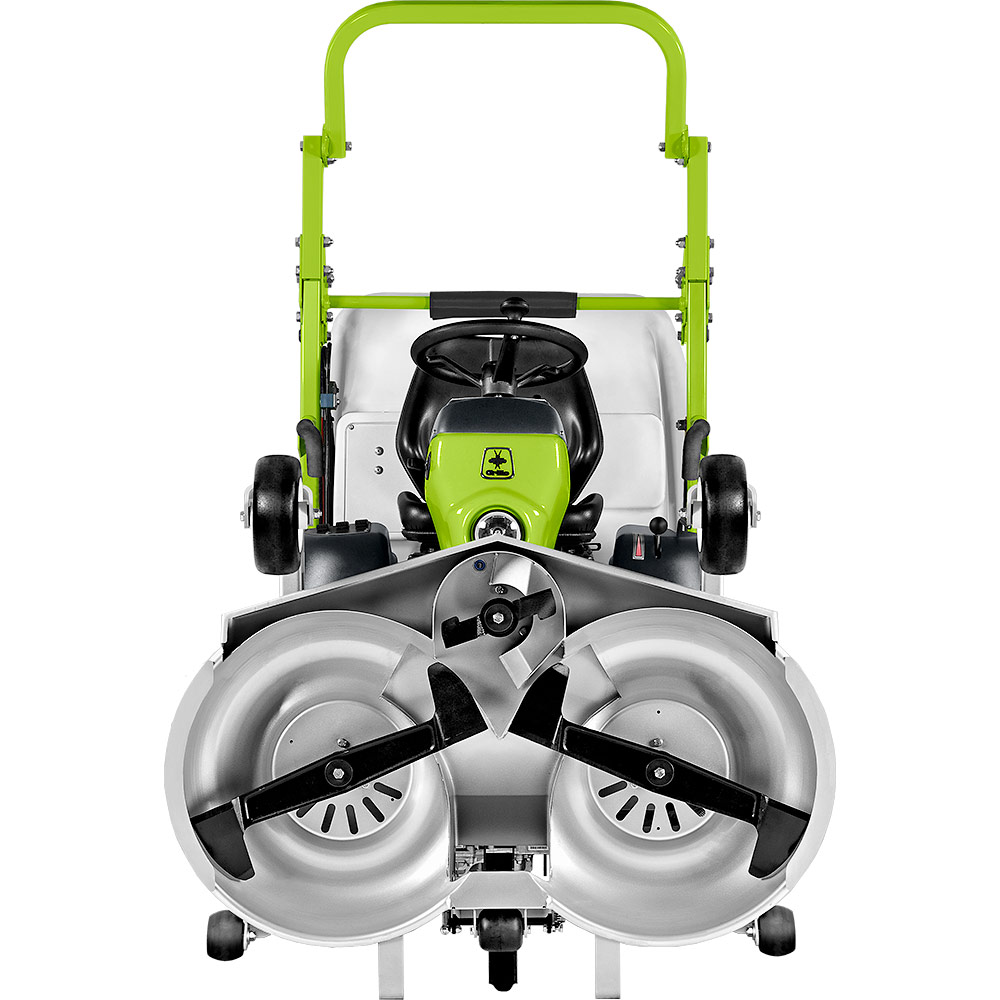

Cutter deck: Frontal cutting deck with collection. Mulching kit cod. 9M0611 is an optional attachment. Solid wheels. Cutting deck with coupling for washing.

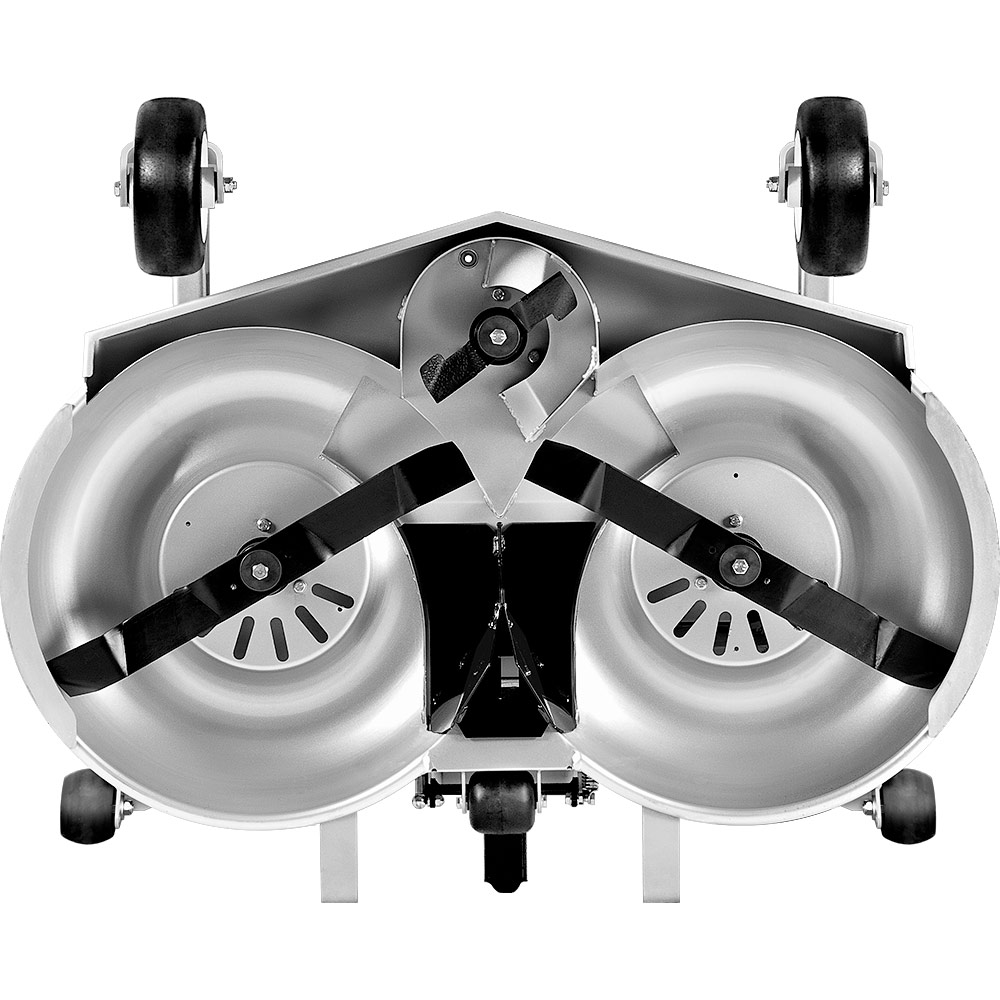

Cutting configuration: 3 rotating blades
Cutting deck width: 1190 mm
Cutting width: 1130 mm

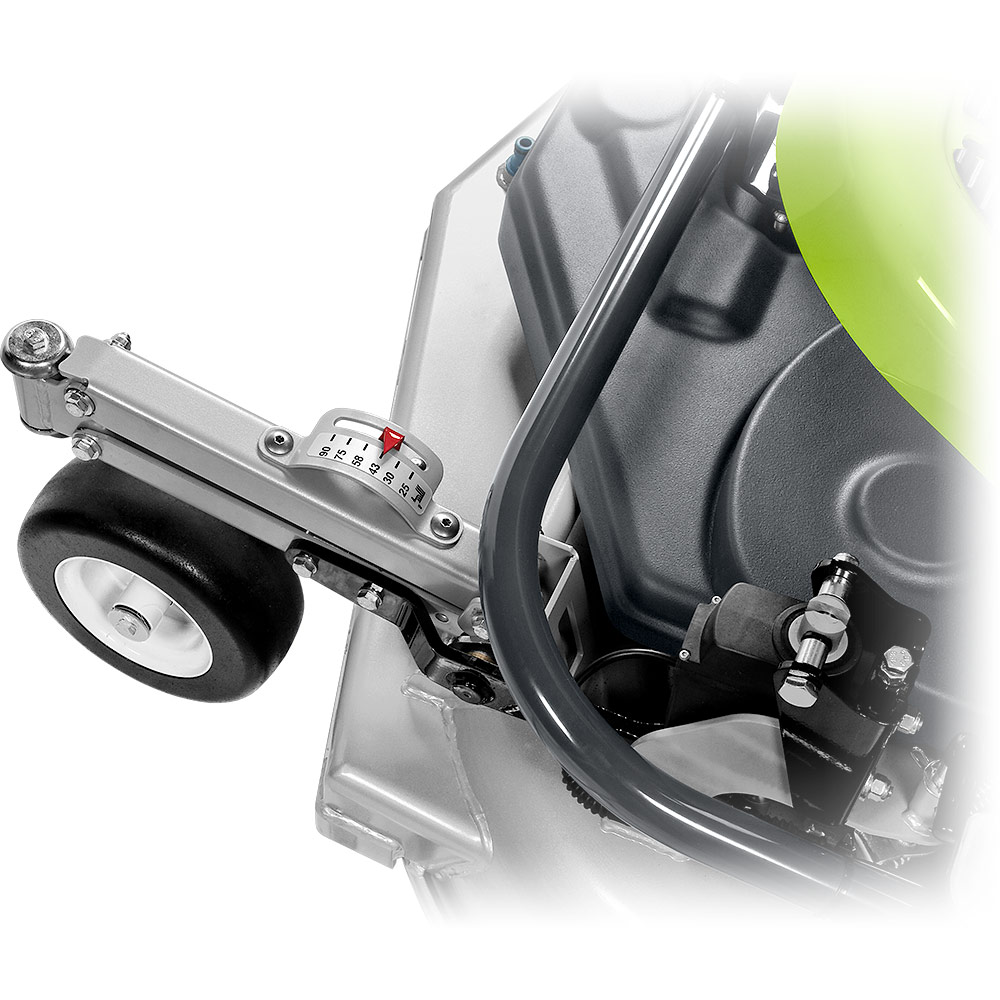

Cutting height: Continuous electric cutting height adjustment from 25 to 90 mm

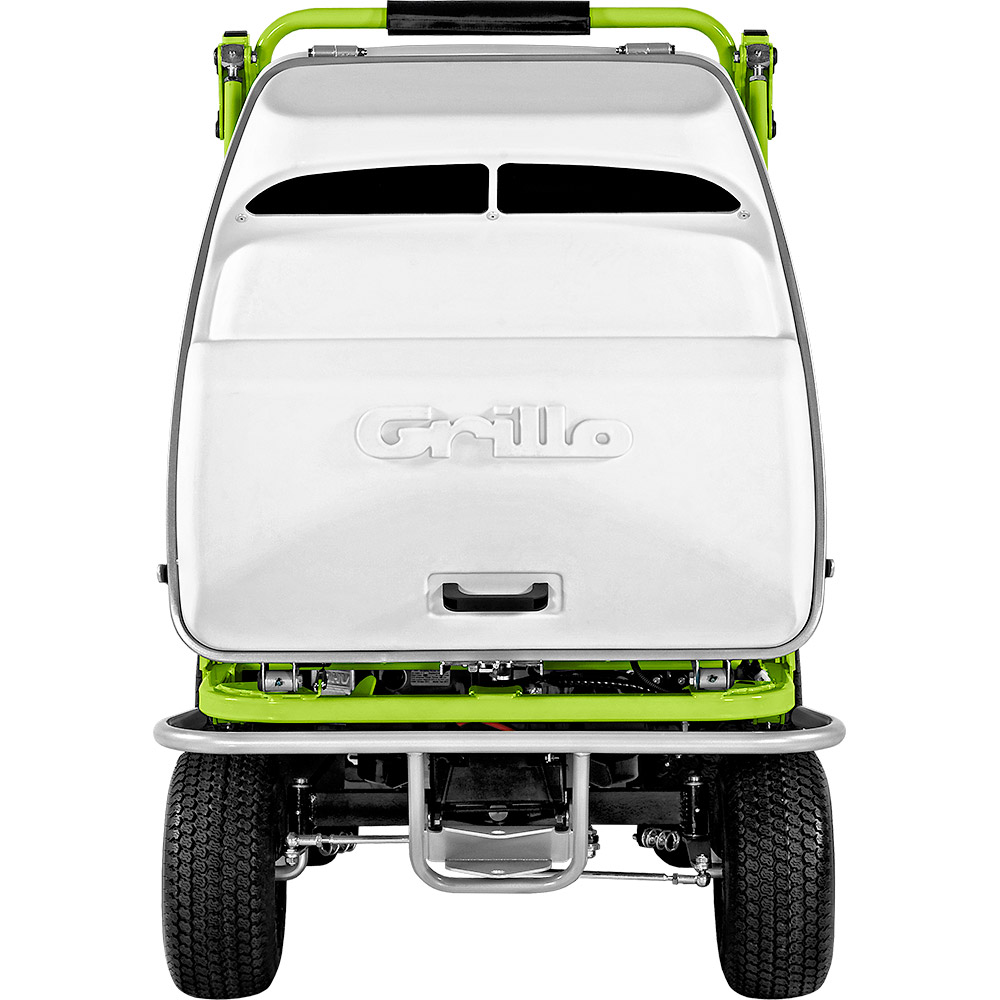

Grass collector capacity: 450 litres with full grass catcher motorised micro-switch.

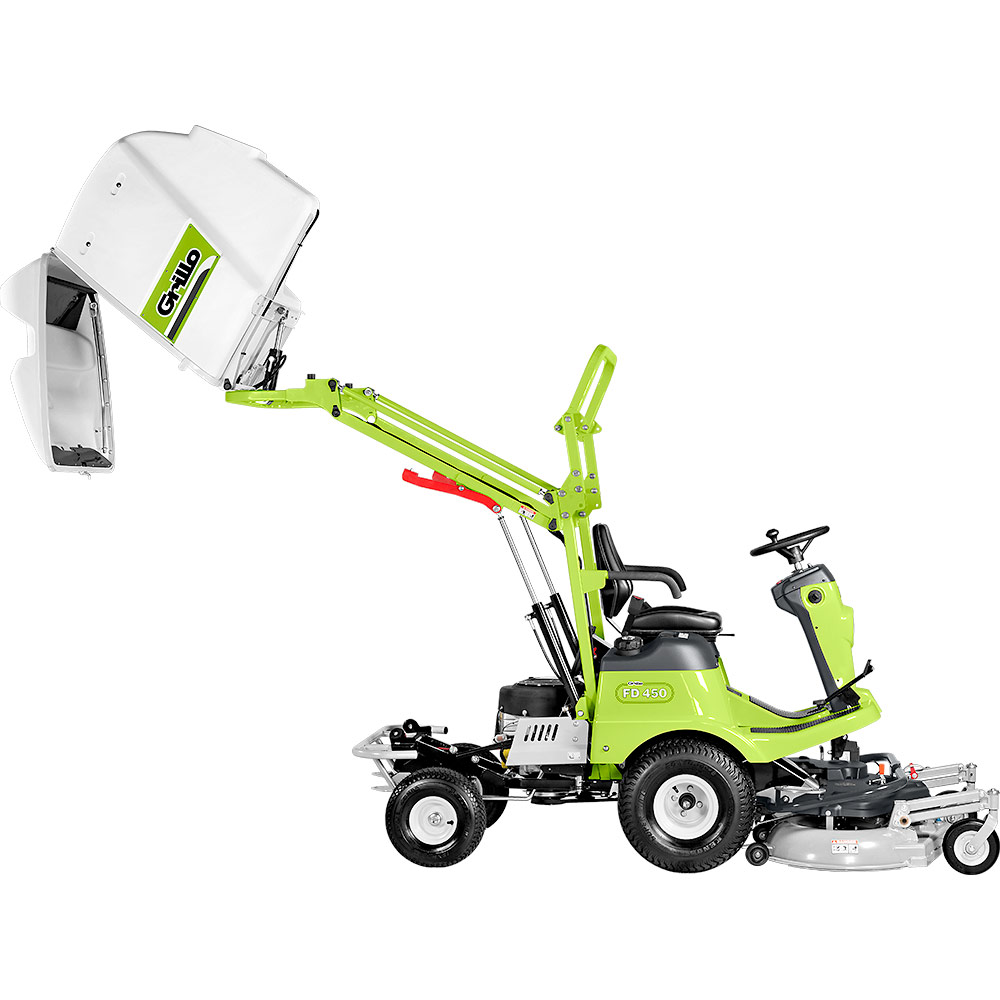

Grass collector discharging system: Grass-catcher discharge and lifting hydraulically operated. Movements are activated through electric buttons. The grass-catcher opening is automatically activated.
Maximal discharging height: 170 cm
Rear projection: 45 cm
Differential locking: Mechanical with pedal control
Front tyres: 20×10.00-8 Turf wheels
Rear tyres: 15×6.00-6 Turf wheels

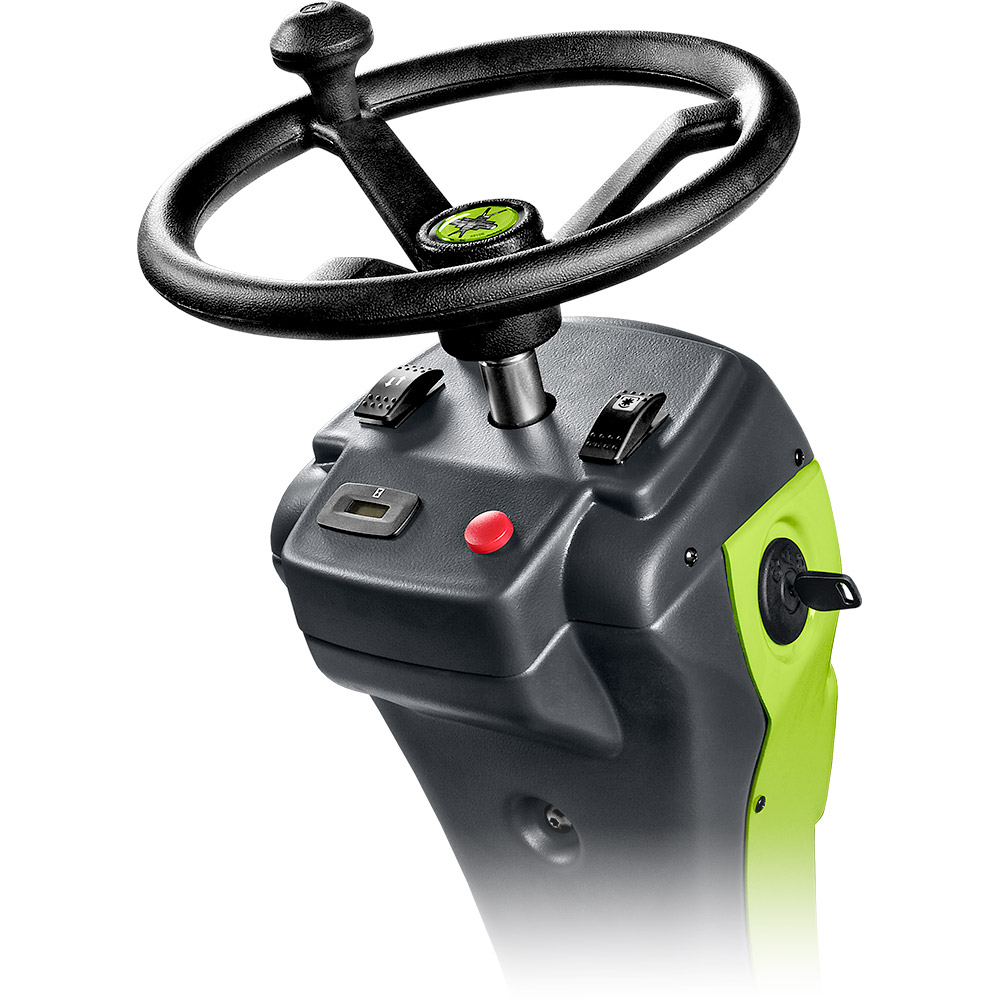

Steering system: With steering wheel, hydraulic drive, forward and reverse gear engaged through pedal
Speed: 0-11 km/h (forward) and 0-6 km/h (reverse) through pedal control device
Inner turning radius: 30 cm
Seat: Dampened seat, adjustable by means of a lever
Parking brake: Disk brake
Mowing capacity per hour (indicative): 8000 m^2/h
Standard features: Tow bar and roll bar
Length: 2680 mm
Width: 1190 mm

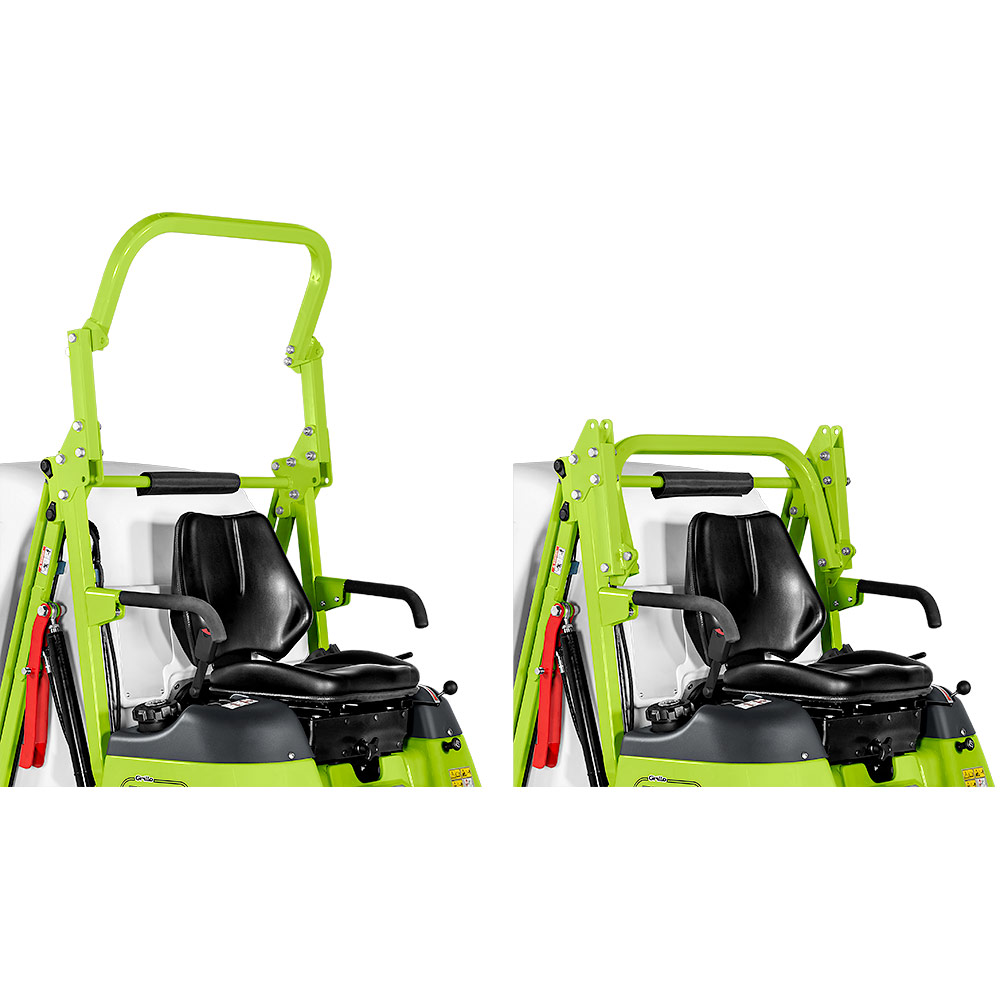

Height: 1460 mm with lowered roll bar; 1940 mm with raised roll bar
Weight: 450 kg
