GRILLO FD 13.09 STAGE5 4WD MOWER
The FD 13.09 4-wheel drive hydrostatic lawnmower is specially designed for cutting and collecting grass. The wide plate and basket, combined with an extremely small turning radius, make it the ideal tool for maintenance technicians. The permanent integral 4WD system allows you to do an excellent job in safe conditions on any type of slope. FD 13.09 is unsurpassed for the maintenance of gardens in schools, public parks, sports facilities, camping, riding schools and wherever a beautiful aesthetic effect and effective cleaning are required.
Enquire for price
VIEW PARTS/ACCESSORIES
VIEW PARTS/ACCESSORIES
DISCLAIMER
The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.
Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.
PRICING & STOCK AVAILABILITY
Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.
Engine: Yanmar 3TNV82A Stage5, Start electric, with 12 V battery, Supply diesel, Displacement 1331 cc, 3 Cylinders, Power 26 HP (18.9 kW), Air cooled, Dry air filter with interchangeable filter cartridges, safety filter and prefilter
Fuel tank capacity: 23 L
Hydraulic oil tank: 20 L
Traction: Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius)
Gearbox: Hydrostatic transmission with 4 hydraulic engines on the 4 wheels
Clutch: hydraulic for PTO
Cutter deck: Cutting deck with collection and mulching kit
Cutting deck: width 141 cm
Cutting width: 132 cm
Cutting height: from 2 to 10 cm, continuously adjustable through hydraulic.
Grass collector capacity: 900 L
Grass catcher charging system: Load accelerator (Ø 350 mm) with floating blades, belt transmission and independent magnetic clutch. Motorised baffle providing full and even grass catcher filling.

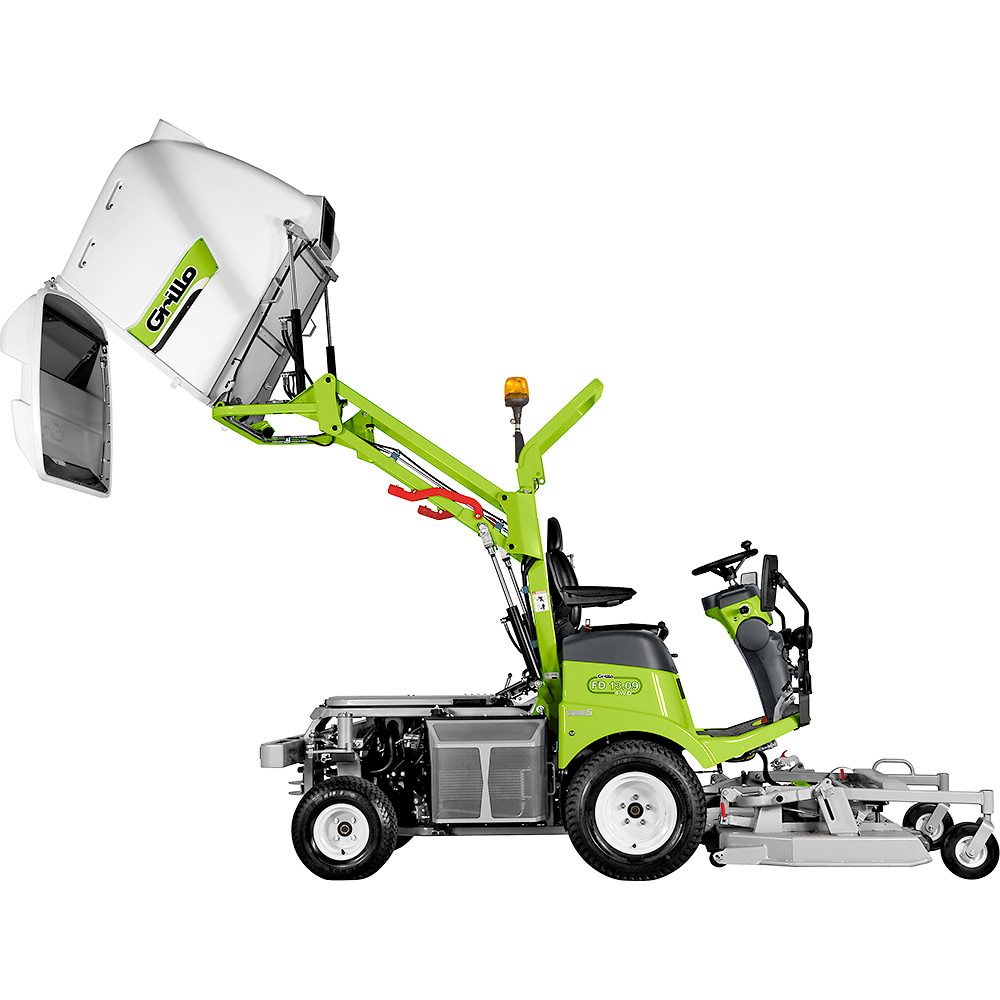

Grass collector discharging system: Automatic opening for grass-catcher hydraulic discharge
Maximal discharging height: 200 cm
Rear projection: 20 cm
Differential locking: Automatic differential lock and manual with push button
Front tyres: 23×10.50-12 TURF WHEELS
Rear tyres: 18×8.50-8 TURF WHEELS
Steering: system Hydraulic drive with steering wheel
Speed: From 0 to 15 km/h continuously variable
Inner turning radius: 31 cm
Seat: Super comfort and adjustable sprung seat with arm-rests.
Service brake: Drum brake
Parking brake: Drum brake
Mowing capacity per hour (indicative): 12000 m²/h
Standard features: Automatic disengagement of blades and load accelerator when the grass catcher is full. Hydraulic cutting deck lifting and grass catcher discharge. Mulching kit for 132 cm cutting deck. Lights and indicator kit.
Length: 325 cm
Width: 141 cm
Height: 175 cm
Distance between axles: 123 cm
Clear span from the ground: 15 cm
Weight: 1040 kg without cutting deck; 1230 kg with cutting deck
