GRILLO FD 2200TS STAGE5 4WD MOWER
FD 2200 TS represents the maximum expression of technology and performances that can be obtained today from hydrostatic lawnmowers with collection.
It has permanent 4-wheel drive, front cutting deck, very large grass catcher and raised discharge. The engine is of the latest generation, powerful and reliable, has low polluting emissions and meets the international STAGE 5 standards.
The 60 cm turning radius FD 22200 TS, the unique handling, the maximum stability on slopes, the excellent cutting capacity of the sturdy front plate and a collection system capable of compacting the grass inside the large basket, are able to to satisfy every demanding maintenance technician who is attentive to the quality of his work.
Enquire for price
VIEW PARTS/ACCESSORIES
VIEW PARTS/ACCESSORIES
DISCLAIMER
The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.
Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.
PRICING & STOCK AVAILABILITY
Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.
Engine: Yanmar 4TNV88C Stage5, Start electric, with 12 V battery, Supply diesel, Displacement 2190 cc, 4 Cylinders, Power 47 HP (34.3 kW), Liquid cooled with hydraulic impeller and equipped with automatic radiator cleaning device, Dry air filter with interchangeable filter cartridges, safety filter and prefilter
Fuel tank capacity: 50 L
Hydraulic oil tank: 25 L
Traction: hydraulic, 4 wheel drive (permanent even with narrow turning radius)
Gearbox: hydrostatic transmission with hydraulic motors on the 4 wheels
Clutch: hydraulic, with electric control activated through PTO and with blade brake
Cutting height: hydraulic adjustable from 2 to 12 cm
Grass collector capacity: 1400 L
Grass catcher charging system: Ø 400 cm (16 “) turbine with hydraulic motor fitted with a safety valve to avoid damage due to foreign objects. Turbine activation independent of the cutting deck. Double working speed.

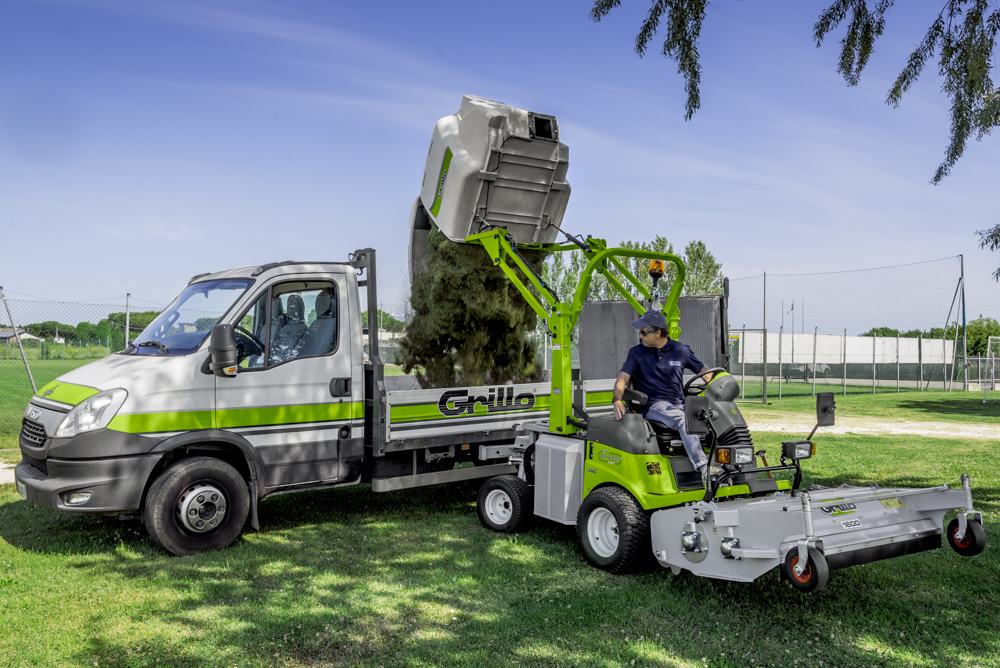

Grass collector discharging system: hydraulic grass catcher emptying with automatic opening
Maximal discharging height: 250 cm
Rear projection: 50 cm
Differential locking: self-engaging and manual with push button
Front tyres: 24×12.00-12 garden
Rear tyres: 20×10.00-10 garden
Steering system: steering wheel with hydraulic drive
Speed: from 0 to 22 km/h continuously variable
Inner turning radius: 62 cm
Seat: super comfort adjustable and sprung seat with armrests
Mowing capacity per hour (indicative): 15500 m^2/h
Standard features: automatic disengagement of blade and turbine when grass catcher is full. Hydraulic deck lifting and grass catcher emptying. Lights and indicators kit, digital display with rpm indication and safety micro-switches control
Length: 281 cm without cutting deck – 364 cm with cutting deck [p/n. 9M5211]
Width: 138 cm without cutting deck – 162 cm with cutting deck [p/n. 9L9611]
Height: 199 cm (with roll bar or cabin 231 cm)
Distance between axles: 141 cm
Clear span from the ground: 16 cm
Weight: 1385 kg without cutting deck – 1656 kg [p/n. 9M5211]
SPECIFICATIONS
| Make | |
|---|---|
| Model | |
| Engine | |
| CC's | |
| Fuel Capacity | |
| Weight | |
| Starter | |
| Drive System | |
| Horsepower | |
| SKU |
