GRILLO CLIMBER 9.22

Name: GRILLO CLIMBER 9.22
SKU: GRILLO-CLIMBER9.22
Availability: InStock

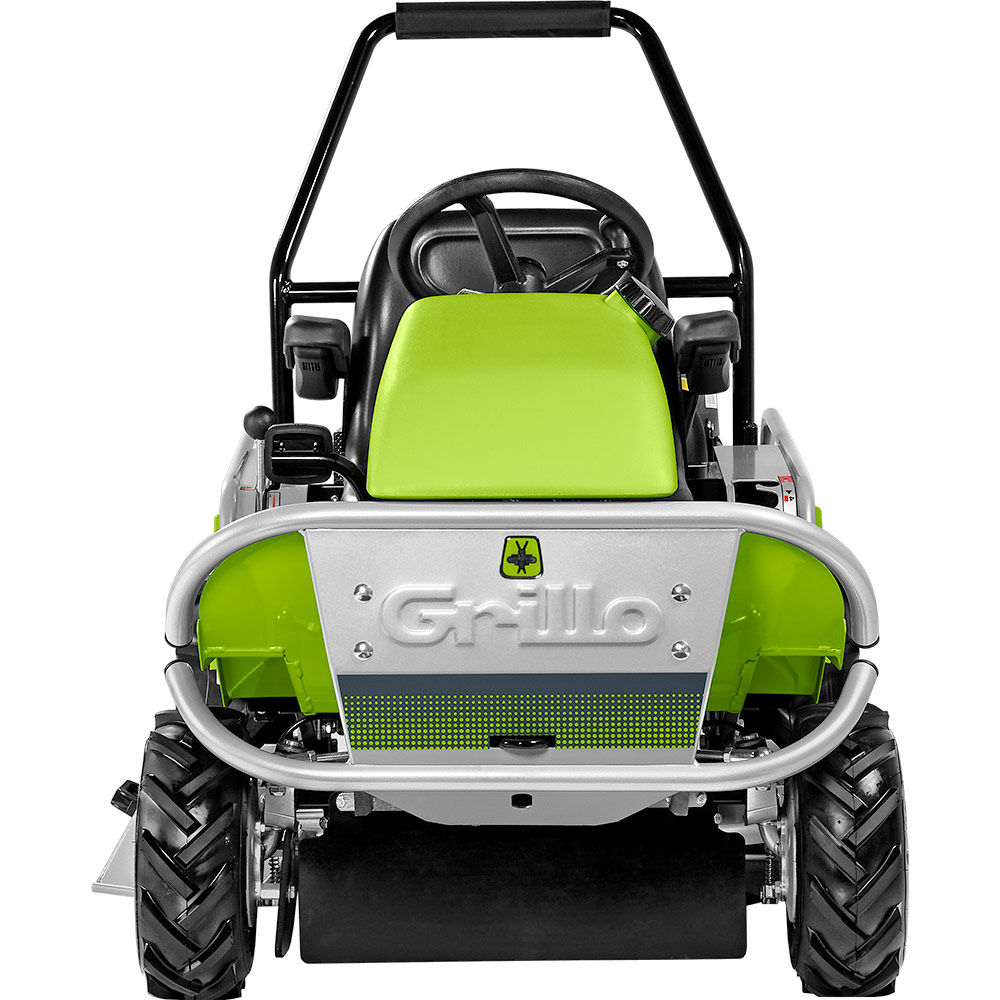

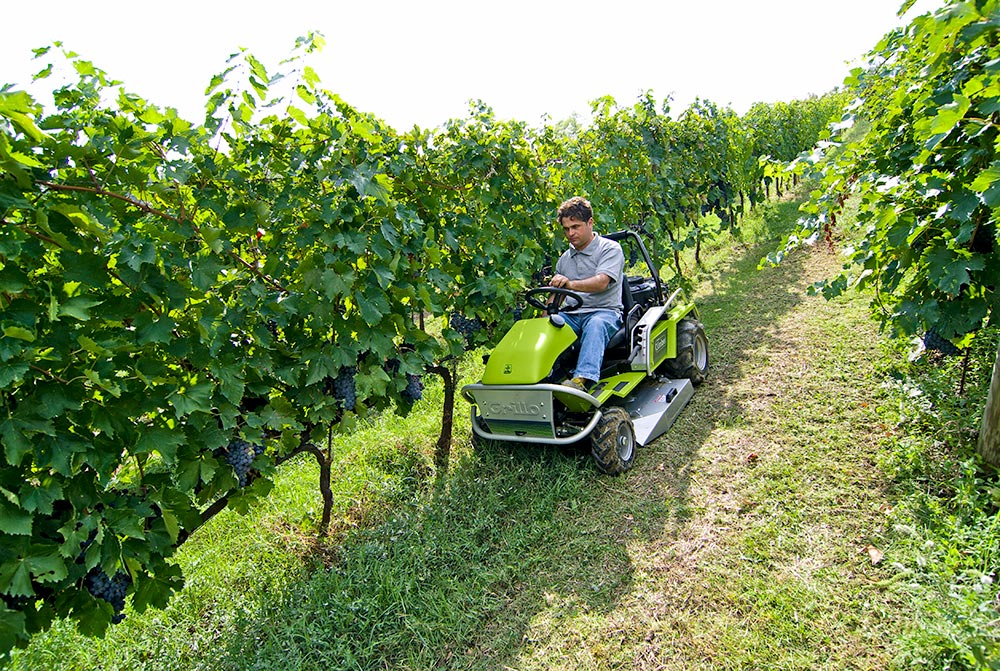

The Climber 9.22 is a hydrostatic ride-on brush cutter. It is equipped with a diff- lock and front parking brakes and it is ideal for mowing high grass and overgrown neglected areas. The machine is especially suited for use on steep slopes and banks due to its low centre of gravity and wide wheelbase. With a high performance Briggs & Stratton 18HP engine, the Climber 9.22 can perform these tasks safely,quickly and efficiently. The machine is ideal for working in the countryside, agriculture, or in the maintenance of both professional and domestic gardening. Its extreme maneuverability, smooth drive and high work rate make the Grillo Climber 9.22 an extremely rapid and efficient machine whilst at the same time being very easy to use.

Enquire for price

Export as PDF Print

VIEW PARTS/ACCESSORIES

HIDE PARTS/ACCESSORIES

VIEW PARTS/ACCESSORIES

DISCLAIMER

The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.

Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.

PRICING & STOCK AVAILABILITY

Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.

Engine: Briggs & Stratton 7220 Professional Series V-Twin, Start electric, with 12 V battery, Supply fuel, Displacement 656 cc, 2 Cylinders, Power 18 HP (13.2 kW) – Gross power 22 HP, Air cooled, Dry air filter
Fuel tank capacity: Fuel tank 13 litres (reserve tank 3 litres)
Gearbox: hydrostatic transmission with reduction gear unit and diff
Clutch: electromagnetic for PTO with blade brake
Cutter deck: Side/rear discharge
Cutting configuration: 1 rotating blade
Cutting width: 910 mm
Cutting height: 4 different cutting positions from 30 to 90 mm plus 1 for transfer
Differential locking: Differential locking device by pedal action
Front tyres: Tractor 13×5.00-6 wheels
Rear tyres: Tractor 17×8.00-8 wheels
Speed: Continuously variable from 0 to 10 km/h, reverse gear from 0 to 6 km/h
Inner turning radius: 38 cm
Seat: Seat equipped with springs, adjustable, with arm-rests and roll bar
Service brake: On the front wheels brakes are pedal-operated
Parking brake: On the rear wheels brakes are lever-operated
Mowing capacity per hour (indicative): 7200 m^2/h
Standard features: –
Length: 1800 mm
Width: 990 mm
Height: 1070 mm
Weight: 311 kg

SPECIFICATIONS

Make	Grillo
Model	CLIMBER 9.22
Engine	Briggs & Stratton 7220 Professional Series V-Twin
CC's	656cc
Fuel Capacity	13L
Weight	311kg
Starter	electric
Drive System	HST
Horsepower	18 HP (13.2 kW)
SKU	GRILLO-CLIMBER9.22
