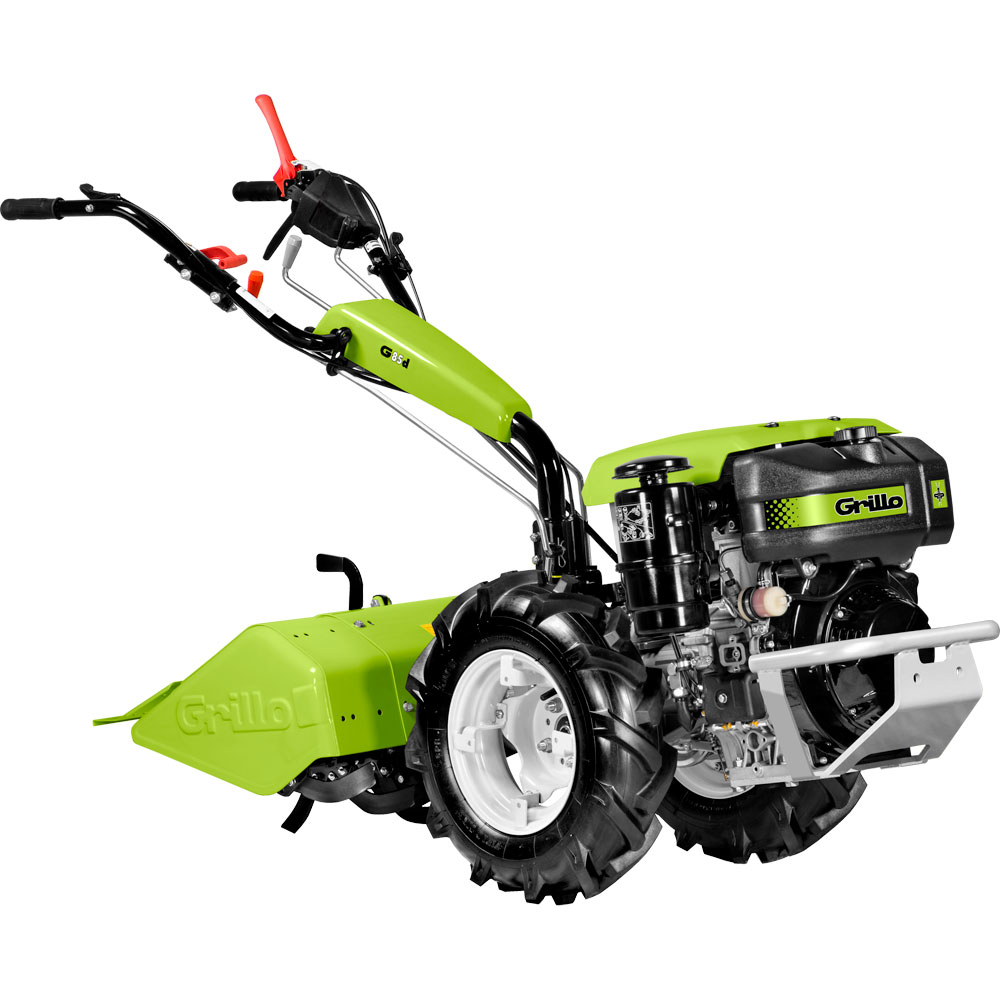

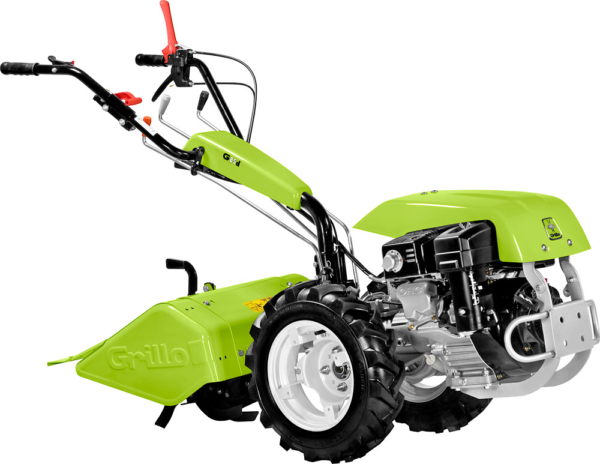

GRILLO G 85D WALK BEHIND ROTARY HOE
The Grillo G85d is an appropriate walk behind rotary hoe for working in horticulture, orchards, vegetable plots and for gardening in medium-sized and large areas.
It is fitted with a 4 speed- gearbox with gears in oil-bath, with 2 forward and 2 reverse gears. The differential lock comes as a standard feature. Due to the several safety devices it is fitted with, this walk behind rotary hoe can be safely used.
Enquire for price
VIEW PARTS/ACCESSORIES
VIEW PARTS/ACCESSORIES
DISCLAIMER
The material and information contained on this website is for general information purposes only. You should not rely upon the material or information on the website as a basis for making business, legal, or any other decisions.
Whilst we endeavour to keep the information up to date and correct, Agpower makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such material is therefore strictly at your own risk.
PRICING & STOCK AVAILABILITY
Due to stock availability changing daily, you can submit an order enquiry for this product, combined with other products on our website, using our ADD TO WISHLIST feature. This is not a commitment to purchase, only an order enquiry. A member of our team will contact you regarding stock availability, pricing and pick up/delivery options. Alternatively, you can contact us via our Product Enquiry form below.
Engine: Grillo EX27 OHC, Start recoil starter, Supply fuel, Displacement 265 cc, 1 Cylinder, Power 8.3 HP (6.1 kW), Air cooled, Dry air filter
Engine: Kohler KD15 350, Start recoil starter, Supply diesel, Displacement 349 cc, 1 Cylinder, Power 7.5 HP (5.5 kW), Air cooled, Oil bath air filter
Engine: Grillo EX27 OHC, Start electric, with 12 V battery, Supply fuel, Displacement 265 cc, 1 Cylinder, Power 8.3 HP (6.1 kW), Air cooled, Dry air filter
Engine: Kohler KD15 350, Start recoil starter and electric with 12V battery, Supply diesel, Displacement 349 cc, 1 Cylinder, Power 7.5 HP (5.5 kW), Air cooled, Oil bath air filter
Fuel tank capacity: 6.1 L eng. EX 27 OHC – 4.3 L eng. KD15 350
Transmission: with oil bath gears

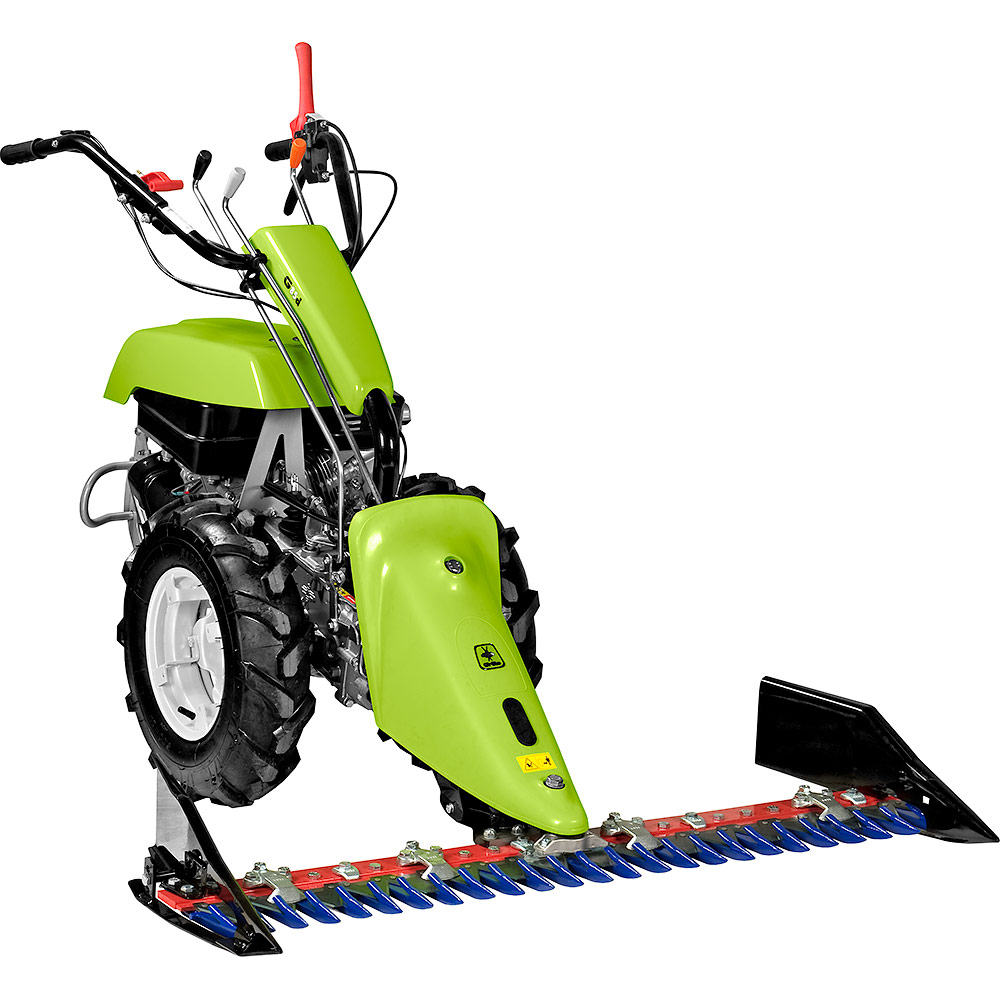

Gearbox: With clutch engagement. The walk behind rotary hoe version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears
Reverse gear unit: by lever
Clutch: conic active
Standard rotary hoe: Adjustable rotary hoe with x 4 tines. Working width 580 mm
Hoes system diametre: 315 mm
Working width: Adjustable at 370 and 470 mm (680 mm with extension kit cod. 929112)
Working depth: 16 cm
Item no. standard rotary hoe: 984511
P.T.O.: 965 rpm independent of the gearbox. Clockwise rotation for the walk behind rotary hoe version, anticlockwise rotation for the sickle bar version.
Differential locking: Differential with locking device by lever on the handlebar
Available tyres: Pneumatic wheels tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels tractor 5.00-12 (adjustable disks) for plough kit. Wide steel wheels having diameter 40 x 10 cm. Pneumatic wheels garden 20×10.00-8 (extensions cod. 937112 needed)
Speed: With 4.00-10 wheels 1st gear 1,2 km/h, 2nd gear 3,0 km/h
Service brake: Brake drum (kit upon request cod. 978111)
Handlebar: Height and side adjustment. Fitted on anti-vibration blocks
Safety devices: Active clutch, reverse speed – PTO cut-out
Weight: standard version 112 kg
